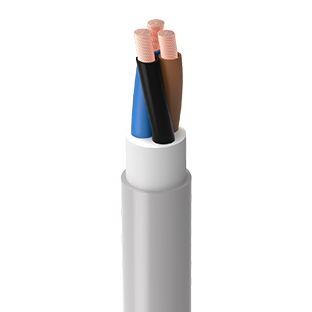

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
INSULATION: XLPE compound (Cross-linked polyethylene), 2XI1 type (TS 13751)
FILLER: Halogen-Free compound
SHEATH: Halogen-Free compound, HM2 type (TS 13751 )
COLOR: Grey
Çalışma Karakteristlikleri
RATED VOLTAGE: 300/500 V (U0/U)
AC TEST VOLTAGE: 2 kV
OPERATING TEMPERATURE: -30°C to +90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 250°C (Max. 5 sec)
MIN. INSTALLATION TEMP.: -5°C
MIN. BENDING RADIUS: Based on VDE 0298-3
CURRENT CARRYING CAPACITIES: IEC 60364-5-52 Tab B52.1 & B52.3 & B52.5 & B52.12
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (free movement) (mm) |
-Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 2×0,75 | 7,80 | 84 | 31 | 26,00 |
| 2×1 | 8,20 | 92 | 33 | 19,50 |
| 2×1,5 | 8,40 | 105 | 34 | 13,30 |
| 2×2,5 | 9,20 | 138 | 37 | 7,98 |
| 2×4 | 10,60 | 187 | 42 | 4,95 |
| 2×6 | 11,40 | 240 | 46 | 3,30 |
| 2×10 | 14,20 | 386 | 57 | 1,91 |
| 3×0,75 | 8,20 | 95 | 33 | 26,00 |
| 3×1 | 8,60 | 104 | 34 | 19,50 |
| 3×1,5 | 8,80 | 121 | 35 | 13,30 |
| 3×2,5 | 9,60 | 158 | 38 | 7,98 |
| 3×4 | 11,20 | 227 | 45 | 4,95 |
| 3×6 | 12,40 | 301 | 50 | 3,30 |
| 3×10 | 15,00 | 468 | 60 | 1,91 |
| 4×0,75 | 8,70 | 109 | 35 | 26,00 |
| 4×1 | 9,20 | 125 | 37 | 19,50 |
| 4×1,5 | 9,50 | 144 | 38 | 13,30 |
| 4×2,5 | 10,30 | 189 | 41 | 7,98 |
| 4×4 | 12,50 | 297 | 50 | 4,95 |
| 4×6 | 13,90 | 388 | 56 | 3,30 |
| 4×10 | 16,30 | 584 | 65 | 1,91 |
| 5×0,75 | 9,30 | 126 | 37 | 26,00 |
| 5×1 | 9,90 | 143 | 40 | 19,50 |
| 5×1,5 | 10,20 | 169 | 41 | 13,30 |
| 5×2,5 | 11,10 | 224 | 44 | 7,98 |
| 5×4 | 13,80 | 352 | 55 | 4,95 |
| 5×6 | 15,10 | 458 | 60 | 3,30 |
| 5×10 | 17,80 | 700 | 71 | 1,91 |
