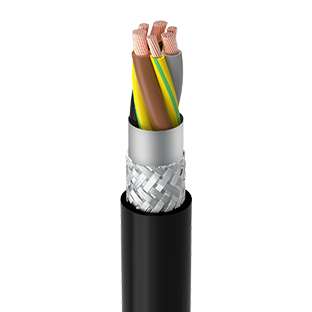

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
INSULATION: XLPE compound (Cross-linked polyethylene), 2XI1 type (VDE 0276-604, IEC 60502-1)
SCREEN: Al-Pes Tape (%100 covered)
SCREEN: Tinned copper wire braiding
SHEATH: Halogen-Free compound, TM7 type (EN 50363-8)
COLOR: Black, Grey or Orange
Çalışma Karakteristlikleri
RATED VOLTAGE: 600 / 1000 V (U0/U)
AC TEST VOLTAGE: 4 kV
WORKING TEMPETATURE: -30°C to +90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 250°C (Max. 5 sec)
MIN. INSTALLATION TEMP.: -5 °C
MIN. BENDING RADIUS: VDE 276-604, HD 604 S1 Part 4
CURRENT CARRYING CAPACITIES: IEC 60364-5-52 Tab.B12
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (fixed installation) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 4×1,5 | 10,60 | 160 | 106 | 13,30 |
| 4×2,5 | 12,00 | 225 | 120 | 7,98 |
| 4×4 | 13,20 | 290 | 132 | 4,95 |
| 4×6 | 14,60 | 380 | 146 | 3,30 |
| 4×10 | 17,50 | 592 | 175 | 1,91 |
| 4×16 | 20,30 | 866 | 203 | 1,21 |
| 4×25 | 25,80 | 1315 | 258 | 0,780 |
| 4×35 | 28,30 | 1750 | 283 | 0,554 |
| 4×50 | 32,90 | 2380 | 329 | 0,386 |
| 4×70 | 38,70 | 3432 | 387 | 0,272 |
| 4×95 | 42,80 | 4315 | 428 | 0,206 |
| 4×120 | 47,80 | 5441 | 478 | 0,161 |
| 4×150 | 52,60 | 6675 | 526 | 0,129 |
| 4×185 | 58,50 | 8065 | 585 | 0,106 |
| 3×2,5+3×0,50 | 14,80 | 306 | 148 | 7,98 |
| 3×4+3×0,75 | 13,20 | 310 | 132 | 4,95 |
| 3×6+3×1 | 18,30 | 480 | 183 | 3,30 |
| 3×10+3×1,5 | 18,50 | 585 | 185 | 1,91 |
| 3×16+3×2,5 | 21,50 | 848 | 215 | 1,21 |
| 3×25+3×4 | 23,70 | 1130 | 237 | 0,780 |
| 3×35+3×6 | 26,00 | 1500 | 260 | 0,554 |
| 3×50+3×10 | 30,10 | 2095 | 301 | 0,386 |
| 3×70+3×10 | 34,70 | 2785 | 347 | 0,272 |
| 3×95+3×16 | 38,70 | 3588 | 387 | 0,206 |
| 3×120+3×16 | 43,00 | 4485 | 430 | 0,161 |
| 3×150+3×25 | 47,20 | 5641 | 472 | 0,129 |
| 3×185+3×35 | 52,60 | 6930 | 526 | 0,106 |
| 3×240+3×50 | 59,80 | 9220 | 598 | 0,0801 |
