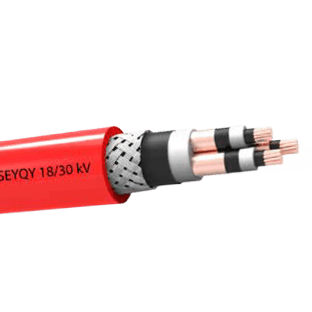

Kablo Yapısı
Conductors : Circular Stranded Plain Annealed Copper Conductor (class 2 acc. to IEC 60228)
Insulation Electrical Field : 3GI3 type EPR Compound
Control : Extruded inner and outer rubber semiconductive layer
Core Identification : Natural coloring with black semiconductive layer
Screen : Copper tapes applied over each main core
Lay Up : 3- Screened Cores will be laid up in concentrically
Bedding : PVC Filler
Armour : Galvanized Steel Wire Braid (GSWB) Min %90
Outer Sheath : Special PVC compound, flame retardant
Color : Red
Çalışma Karakteristlikleri
Rated Voltage : 18/30 kV
AC Test Voltage : 48 kV
Max. Permissible :
Operating Voltage AC : 20,8/36 kV
Max. Permissible :
Operating Voltage DC : 27/54 kV
Min Bending Radius : Acc. to DIN VDE 0298 part 3
Current Carrying Capacity : According to DIN VDE 0298, Part 4
Max Short Circuit Temperature : 250°
Max Conductor Temperature : 90°C
Working Temperature :
Fixed : -25ºC … +80ºC
Mobile : +5ºC … +80ºC
Max. Tensile Load of cable : 15 N/mm²
Max. Torsion : 25º/m
Teknik Özellikleri
| Cross Section (mm2) | Overall Diameter Mln-Max (mm) | Max. DC Resistance (20°C) (Ω/km) | Approxlmate welght (kg/km) | |
|---|---|---|---|---|
| 3 x 25 /16 | 65.1 – 72.0 | 0.727 | 6860 | |
| 3 x 35 /16 | 68.0 – 75.1 | 0.524 | 7640 | |
| 3 x 50 /16 | 70.8 – 78.3 | 0.387 | 8520 | |
| 3 x 70 / 16 | 74.5 – 82.4 | 0.268 | 9760 | |
| 3 x 95 / 16 | 79.0 – 87.2 | 0.193 | 11280 | |
| 3 x 120 / 16 | 82.2 – 90.9 | 0.153 | 12600 |
