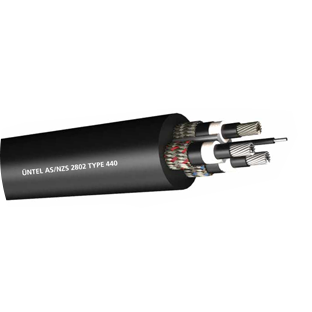

Kablo Yapısı
İLETKEN: Elektrolitik, kalaylı çoklu bükülmüş esnek bakır tel. (Rope lay) AS/NZS 1125-2.10
AYIRICI: 3.3/3.3kV ve üstü tiplerde faz iletkenlerinde yarı iletken tabaka kaplı
İZOLASYON: R-EP-90 (Sınıf 2, AS/NZS 3808’e göre)
AYIRICI: Yarı iletken tabaka (3.3/3.3kV ve üstü) (Kumanda damarları hariç)
EKRAN: Faz damarların üzeri kalaylı bakır tel ve ip ekran ile örgülü.
BÜKÜM: Faz damarlar birbirine değmeyecek ancak kumanda damarlarına değecek şekilde yarı iletken fitil etrafına sarılarak bükülür
DIŞ KILIF: Ağır hizmete yönelik elastomer dış kılıf (AS/NZS 3808’e göre).
Çalışma Karakteristlikleri
İLGİLİ STANDARTLAR: AS/NZS 2802
ANMA GERİLİMİ: 1.1/1.1 kV, 3.3/3.3 kV, 6.6/6.6 kV, 11/11 kV, 22/22 kV
TEST GERİLİMİ: 4,2 kV, 12 kV, 22 kV, 30 kV 45 kV
Teknik Özellikleri
| Güç damarları | Ekran | Kumanda Damarları | Kılıf | Ağırlıklar | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Kesit (mm2) | Büküm (mm) | İletken Çapı (mm) | İzolasyon Kalınlığı (mm) | İzolasyon Çapı (mm) | Örgü Telleri (no/mm) | Nominal Kesit (mm2) | Büküm (Min.no/mm) | İzolasyon Kalınlığı (mm) | Kalınlık (mm) | Kablo Çapı (Nom. Mm) | Yaklaşık Kablo Ağırlığı (kg/km) | Bakır Ağırlığı (kg/km) |
| Type | 440.1 | 1.1/1.1 kV | Class 2 | insulation | ||||||||
| 6 | 84/0.30 | 3.4 | 1.5 | 6.5 | 7/0.25 | 7.2 | 18/0.30 | 1 | 3.8 | 30 | 1.35 | 418 |
| 10 | 77/0.40 | 4.6 | 1.5 | 7.7 | 7/0.25 | 8.6 | 27/0.30 | 1 | 3.8 | 32.6 | 1.65 | 594 |
| 16 | 126/0.40 | 5.7 | 1.6 | 9 | 7/0.25 | 9.6 | 42/0.30 | 1 | 4 | 35.8 | 2.05 | 824 |
| 25 | 209/0.40 | 7.2 | 1.6 | 10.5 | 7/0.25 | 11.3 | 66/0.30 | 1.2 | 4.3 | 39.7 | 2.7 | 1.181 |
| 35 | 285/0.40 | 8.5 | 1.6 | 11.8 | 7/0.25 | 12.4 | 90/0.30 | 1.2 | 4.6 | 43.1 | 3.25 | 1.55 |
| 50 | 380/0.40 | 10 | 1.7 | 13.5 | 7/0.25 | 14.1 | 120/0.30 | 1.2 | 5 | 47.7 | 4.05 | 2.091 |
| 70 | 203/0.67 | 12 | 1.8 | 16 | 7/0.25 | 16.5 | 39/0.67 | 1.2 | 5.4 | 53.9 | 5.4 | 2.889 |
| 95 | 259/0.67 | 13.2 | 2 | 17.6 | 7/0.30 | 21.8 | 39/0.67 | 1.2 | 6 | 59.3 | 6.6 | 3.762 |
| 120 | 336/0.67 | 15.3 | 2.1 | 20 | 7/0.30 | 24.7 | 42/0.67 | 1.4 | 6.4 | 65.1 | 8.05 | 4.597 |
| 150 | 427/0.67 | 17.1 | 2.3 | 22.2 | 7/0.40 | 36.1 | 54/0.67 | 1.4 | 6.9 | 72.1 | 10.2 | 5.91 |
| 185 | 518/0.67 | 19.2 | 2.5 | 24.7 | 7/0.40 | 40.5 | 63/0.67 | 1.4 | 7.4 | 78.6 | 12 | 7.137 |
| 240 | 672/0.67 | 21.8 | 2.8 | 27.9 | 7/0.50 | 57.7 | 77/0.67 | 1.6 | 8.2 | 88.6 | 15.5 | 9.358 |
| 300 | 854/0.67 | 24.4 | 3 | 30.9 | 7/0.50 | 63.2 | 98/0.67 | 1.6 | 8.8 | 96.3 | 18.7 | 11.457 |
| Type | 440.3 | 3.3/3.3 kV | Class 2 | insulation | ||||||||
| 16 | 126/0.40 | 5.7 | 3 | 12.5 | 7/0.25 | 13.1 | 42/0.30 | 1.4 | 5.3 | 46.2 | 3.05 | 925 |
| 25 | 209/0.40 | 7.2 | 3 | 14 | 7/0.25 | 14.8 | 66/0.30 | 1.4 | 5.6 | 50.1 | 3.8 | 1.282 |
| 35 | 285/0.40 | 8.5 | 3 | 15.3 | 7/0.25 | 15.8 | 90/0.30 | 1.4 | 5.9 | 53.5 | 4.45 | 1.648 |
| 50 | 380/0.40 | 10 | 3 | 16.8 | 7/0.25 | 17.2 | 120/0.30 | 1.4 | 6.3 | 57.6 | 5.25 | 2.181 |
| 70 | 203/0.67 | 12 | 3 | 18.8 | 7/0.25 | 18.6 | 39/0.67 | 1.4 | 6.6 | 62.5 | 6.6 | 2.95 |
| 95 | 259/0.67 | 13.2 | 3 | 20 | 7/0.25 | 20.3 | 39/0.67 | 1.6 | 7.1 | 66.2 | 7.55 | 3.719 |
| 120 | 336/0.67 | 15.3 | 3 | 22.1 | 7/0.30 | 27.2 | 42/0.67 | 1.6 | 7.4 | 72 | 9.15 | 4.669 |
| 150 | 427/0.67 | 17.1 | 3 | 23.9 | 7/0.40 | 39.6 | 54/0.67 | 1.6 | 7.8 | 78 | 11.2 | 6.011 |
| 185 | 518/0.67 | 19.2 | 3 | 26 | 7/0.40 | 42.2 | 63/0.67 | 1.6 | 8.2 | 83.4 | 12.9 | 7.186 |
| 240 | 672/0.67 | 21.8 | 3 | 28.6 | 7/0.40 | 46.6 | 77/0.67 | 1.6 | 8.8 | 90.3 | 15.6 | 9.038 |
| 300 | 854/0.67 | 24.4 | 3 | 31.2 | 7/0.50 | 63.2 | 98/0.67 | 1.6 | 9.4 | 98.4 | 19.2 | 11.457 |
| Type | 440.6 | 6.6/6.6 KV | Class 2 | insulation | ||||||||
| 16 | 126/0.40 | 5.7 | 5 | 16.5 | 7/0.25 | 17.2 | 42/0.30 | 1.4 | 6.4 | 57.3 | 4.45 | 1.043 |
| 25 | 209/0.40 | 7.2 | 5 | 18 | 7/0.25 | 18.6 | 66/0.30 | 1.6 | 6.7 | 61.2 | 5.25 | 1.392 |
| 35 | 285/0.40 | 8.5 | 5 | 19.3 | 7/0.25 | 18.6 | 90/0.30 | 1.6 | 7 | 64.6 | 6 | 1.728 |
| 50 | 380/0.40 | 10 | 5 | 20.8 | 7/0.25 | 21.3 | 120/0.30 | 1.6 | 7.3 | 68.5 | 6.9 | 2.299 |
| 70 | 203/0.67 | 12 | 5 | 22.8 | 7/0.25 | 23.4 | 39/0.67 | 1.6 | 7.7 | 73.7 | 8.35 | 3.088 |
| 95 | 259/0.67 | 13.2 | 5 | 24 | 7/0.30 | 29.2 | 39/0.67 | 1.8 | 8.1 | 77.8 | 9.65 | 3.975 |
| 120 | 336/0.67 | 15.3 | 5 | 26.1 | 7/0.30 | 31.7 | 42/0.67 | 1.8 | 8.5 | 83.1 | 11.2 | 4.799 |
| 150 | 427/0.67 | 17.1 | 5 | 27.9 | 7/0.40 | 45.7 | 54/0.67 | 1.8 | 8.9 | 89.1 | 13.5 | 6.187 |
| 185 | 518/0.67 | 19.2 | 5 | 30 | 7/0.40 | 48.4 | 63/0.67 | 1.8 | 9.3 | 94.5 | 15.3 | 7.365 |
| 240 | 672/0.67 | 21.8 | 5 | 32.6 | 7/0.40 | 52.8 | 77/0.67 | 1.8 | 9.9 | 101.4 | 18.1 | 9.216 |
| 300 | 854/0.67 | 24.4 | 5 | 35.2 | 7/0.50 | 71.5 | 98/0.67 | 1.8 | 10.4 | 109.3 | 21.9 | 11.696 |
| Type | 440.11 | 11/11 KV | Class 2 | insulation | ||||||||
| 25 | 209/0.40 | 7.2 | 7.6 | 23.4 | 7/0.25 | 23.7 | 66/0.30 | 2 | 8.1 | 75.6 | 7.6 | 1.538 |
| 35 | 285/0.40 | 8.5 | 7.6 | 24.7 | 7/0.30 | 30.2 | 90/0.30 | 2 | 8.4 | 79.7 | 8.7 | 2.063 |
| 50 | 380/0.40 | 10 | 7.6 | 26.2 | 7/0.30 | 31.7 | 120/0.30 | 2 | 8.7 | 83.6 | 9.75 | 2.598 |
| 70 | 203/0.67 | 12 | 7.6 | 28.2 | 7/0.30 | 34.1 | 39/0.67 | 2 | 9.1 | 88.8 | 11.4 | 3.396 |
| 95 | 259/0.67 | 13.2 | 7.6 | 29.4 | 7/0.40 | 47.5 | 39/0.67 | 2.2 | 9.6 | 93.7 | 13.2 | 4.502 |
| 120 | 336/0.67 | 15.3 | 7.6 | 31.5 | 7/0.40 | 51 | 42/0.67 | 2.2 | 9.9 | 98.8 | 14.9 | 5.354 |
| 150 | 427/0.67 | 17.1 | 7.6 | 33.3 | 7/0.40 | 53.7 | 54/0.67 | 2.2 | 10.3 | 103.5 | 16.8 | 6.417 |
| 185 | 518/0.67 | 19.2 | 7.6 | 35.4 | 7/0.40 | 57.2 | 63/0.67 | 2.2 | 10.7 | 108.8 | 18.8 | 7.618 |
| Type | 440.22 | 22/22 KV | Class 2 | insulation | ||||||||
| 35 | 285/0.40 | 8.5 | 10.5 | 32.6 | 7/0.40 | 55.4 | 90/0.30 | 2.5 | 10 | 105 | 14.3 | 2.788 |
| 50 | 380/0.40 | 10 | 10.5 | 34.1 | 7/0.40 | 58.1 | 120/0.30 | 2.5 | 10.3 | 108.9 | 15.5 | 3.359 |
