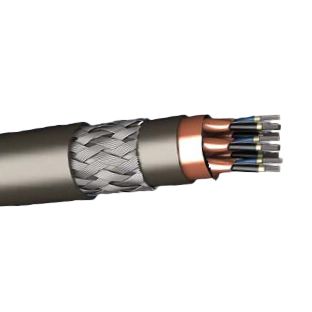

Kablo Yapısı
CONDUCTOR : Electrolytic,stranded,tinned copper wire IEC 60228 Class 2
SEPARATOR : Mica Tape over conductor
INSULATION : Halogen free EPR or Halogen free HEPR compound
LAYUP : Cores laid up in pairs/triads,pairs/triads laid up concentrically.
DRAIN WIRE : Electrolytic,stranded,tinned copper drain wire along with every pair/triad.
INDIVIDUAL SCREEN : Electrolytic copper backed polyester tape screen (100%coverage) over every pair/triad and drain wire.
COLLECTIVE SCREEN : Electrolytic copper backed polyester tape is applied over the laid up pairs metallic side down and in continuous contact with tinned copper drain wire
BEDDİNG : Halogen free compound.
SCRENN : Electrolytic, tinned copper braided screen (%90 coverage)
OUTER SHEATH : SHF2 Compound
Çalışma Karakteristlikleri
CONSTRUCTION : NEK 606, IEC 60092/376
TESTS AND MATERIAL : IEC 60092 /350-351-360
FLAME RETARDATION : IEC 60332 /1, IEC 60332 / 3 Cat A
FIRE RESISTANCE : IEC 60331
HALOGEN CONTENT : IEC 60754 / 1 – 2
SMOKE DENSITY : IEC 61034 / 1-2 ( DIN EN 50268/1-2)
WORKING TEMPERATURE : -40°C / + 90°C
MIN. BENDING RADIUS (FIXED) : 10 x(overall diameter)
RATED VOLTAGE : 250 V
TEST VOLTAGE : 1,5 kV
Teknik Özellikleri
| Pair x size | Cable O.D Approx. |
Approx Weight |
|---|---|---|
| No. x mm² | mm | kg/km |
| 1 x 2 x 1,5 | 13,00 ±%5 | 222 |
| 2 x 2 x 1,5 | 19,50 ±%5 | 445 |
| 4 x 2 x 1,5 | 22,50 ±%5 | 600 |
| 8 x 2 x 1,5 | 30,50 ±%5 | 997 |
| 12 x 2 x 1,5 | 36,00 ±%5 | 1.450 |
