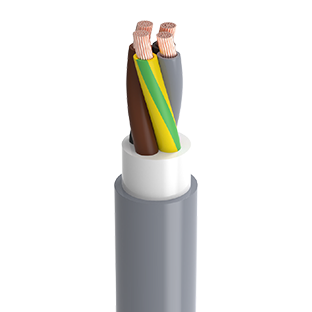

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
INSULATION: Rubber based HEPR or equivalent compound, type G7
INNER COVERING: In need, PVC compound for only multi-core cables above 16mm2
SHEATH: Flame retardant PVC compound, Rz type (EN 50363-0, CEI 20-11)
COLOR: Light Grey
Çalışma Karakteristlikleri
RATED VOLTAGE: 600/1000 V (U0/U)
AC TEST VOLTAGE: 4 kV
OPERATING TEMPERATURE: (WIthout mechanIcal shocks)
IN FLEXING USE: -0°C to +90°C
IN FIXED USE: -15°C to +90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 250°C (Max. 5 sec)
MIN. INSTALLATION TEMP.: 0°C
MIN. BENDING RADIUS: CEI UNEL 35375,CEI UNEL 35377
CURRENT CARRYING CAPACITIES: CEI 20-21, VDE 0298-4 Tab.13 ,
IEC 60364-5-52 Tab. B.52.12 & Tab. C.52.1
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (fixed installation) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 1×1,5 | 6,00 | 55 | 24 | 13,30 |
| 1×2,5 | 6,20 | 65 | 25 | 7,98 |
| 1×4 | 6,80 | 85 | 27 | 4,95 |
| 1×6 | 7,30 | 105 | 29 | 3,30 |
| 1×10 | 8,60 | 160 | 34 | 1,91 |
| 1×16 | 9,70 | 220 | 39 | 1,21 |
| 1×25 | 11,60 | 320 | 46 | 0,78 |
| 1×35 | 12,80 | 415 | 51 | 0,554 |
| 1×50 | 14,80 | 575 | 59 | 0,386 |
| 1×70 | 17,00 | 810 | 68 | 0,272 |
| 1×95 | 18,50 | 995 | 74 | 0,206 |
| 1×120 | 20,60 | 1260 | 82 | 0,161 |
| 1×150 | 23,10 | 1590 | 92 | 0,129 |
| 1×185 | 25,90 | 1990 | 104 | 0,106 |
| 1×240 | 28,50 | 2450 | 114 | 0,0801 |
| 1×300 | 31,50 | 3190 | 126 | 0,0641 |
| 1×400 | 36,60 | 4230 | 146 | 0,0486 |
| 1×500 | 40,50 | 5360 | 162 | 0,0384 |
| 1×630 | 44,00 | 6600 | 176 | 0,0287 |
| 2×1,5 | 11,50 | 205 | 46 | 13,30 |
| 2×2,5 | 12,40 | 240 | 50 | 7,98 |
| 2×4 | 13,60 | 310 | 54 | 4,95 |
| 2×6 | 14,60 | 370 | 58 | 3,30 |
| 2×10 | 17,30 | 540 | 69 | 1,91 |
| 2×16 | 19,40 | 720 | 78 | 1,21 |
| 2×25 | 23,10 | 1050 | 92 | 0,780 |
| 2×35 | 25,60 | 1325 | 102 | 0,554 |
| 2×50 | 29,80 | 1850 | 119 | 0,39 |
| 3×1,5 | 10,20 | 140 | 41 | 13,30 |
| 3×2,5 | 11,20 | 180 | 45 | 7,98 |
| 3×4 | 12,50 | 280 | 50 | 4,95 |
| 3×6 | 13,80 | 315 | 55 | 3,30 |
| 3×10 | 16,20 | 470 | 65 | 1,91 |
| 3×16 | 18,70 | 660 | 75 | 1,21 |
| 3×25 | 24,80 | 1270 | 99 | 0,78 |
| 3×35 | 27,10 | 1650 | 108 | 0,554 |
| 3×50 | 32,20 | 2350 | 129 | 0,386 |
| 3×70 | 36,60 | 3170 | 146 | 0,272 |
| 3×95 | 40,10 | 3890 | 160 | 0,206 |
| 3×120 | 45,00 | 4960 | 180 | 0,161 |
| 3×150 | 50,10 | 6210 | 200 | 0,129 |
| 3×16+10 | 20,60 | 1369 | 82 | 1,21 |
| 3×25+16 | 26,20 | 877 | 105 | 0,78 |
| 3×35+16 | 29,00 | 1742 | 116 | 0,554 |
| 3×50+25 | 33,50 | 2560 | 134 | 0,386 |
| 3×70+35 | 38,30 | 3520 | 153 | 0,272 |
| 3×95+50 | 42,70 | 4470 | 171 | 0,206 |
| 3×120+70 | 48,10 | 5730 | 192 | 0,161 |
| 3×150+70 | 50,00 | 6250 | 200 | 0,129 |
| 4×1,5 | 11,00 | 170 | 44 | 13,30 |
| 4×2,5 | 12,10 | 220 | 48 | 7,98 |
| 4×4 | 13,50 | 290 | 54 | 4,95 |
| 4×6 | 14,70 | 370 | 59 | 3,30 |
| 4×10 | 17,90 | 580 | 72 | 1,91 |
| 4×16 | 20,60 | 830 | 82 | 1,21 |
| 4×25 | 26,80 | 1560 | 107 | 0,78 |
| 4×35 | 29,30 | 1850 | 117 | 0,554 |
| 4×50 | 34,70 | 2614 | 139 | 0,386 |
| 4×70 | 40,80 | 4050 | 163 | 0,272 |
| 5×1,5 | 11,90 | 200 | 48 | 13,30 |
| 5×2,5 | 13,10 | 260 | 52 | 7,98 |
| 5×4 | 14,70 | 355 | 59 | 4,95 |
| 5×6 | 16,10 | 460 | 64 | 3,30 |
| 5×10 | 19,60 | 720 | 78 | 1,91 |
| 5×16 | 22,60 | 1030 | 90 | 1,21 |
| 5×25 | 29,60 | 1880 | 118 | 0,78 |
| 5×35 | 33,60 | 2550 | 134 | 0,554 |
| 5×50 | 39,50 | 3500 | 158 | 0,386 |
| 5×70 | 46,90 | 5020 | 188 | 0,272 |
| 7×1,5 | 12,70 | 245 | 51 | 13,30 |
| 7×2,5 | 14,00 | 325 | 56 | 7,98 |
| 10×1,5 | 15,60 | 330 | 62 | 13,30 |
| 10×2,5 | 17,40 | 445 | 70 | 7,98 |
| 12×1,5 | 16,10 | 375 | 64 | 13,30 |
| 12×2,5 | 18,10 | 510 | 72 | 7,98 |
| 16×1,5 | 17,70 | 475 | 71 | 13,30 |
| 16×2,5 | 19,80 | 650 | 79 | 7,98 |
| 19×1,5 | 18,70 | 535 | 75 | 13,30 |
| 19×2,5 | 20,80 | 740 | 83 | 7,98 |
| 24×1,5 | 21,50 | 660 | 86 | 13,30 |
| 24×2,5 | 24,20 | 920 | 97 | 7,98 |
