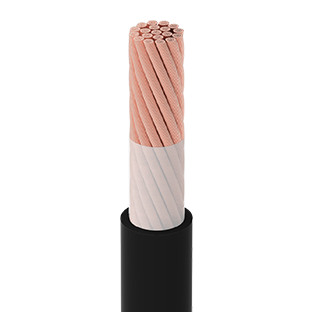

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 6 stranded plain copper wires Class 5 copper wires for 120 mm² and above (tinned conductor on request)
SEPERATOR: A suitable tape may be applied over the conductor
INSULATION: EM5 type cross-linked elastomeric compound (EN 50363-2-2)
COLOR: Black (Red or Orange on request)
Çalışma Karakteristlikleri
RATED VOLTAGE: 100 V / 100 V (U0/U)
MAX. OPERATING VOLTAGE AC: 110 V / 110 V
MAX. OPERATING VOLTAGE DC: 150 V
AC TEST VOLTAGE: 1 kV
OPERATING TEMPETATURE
IN FLEXING USE: -20°C to +85°C
IN FIXED USE: -40°C to +85°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 250°C (Max. 5 sec)
MIN. INSTALLATION TEMP.: -20°C
MIN. BENDING RADIUS: EN 50565-1 Tab. 3
CURRENT CARRYING CAPACITIES: VDE 0298-4, Tab. 16
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) | Min.Bending Radius (free movement) (mm) | Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 1×10 | 8,30 | 137 | 33 | 1,91 |
| 1×16 | 9,40 | 197 | 38 | 1,21 |
| 1×25 | 10,90 | 279 | 44 | 0,780 |
| 1×35 | 12,10 | 369 | 61 | 0,554 |
| 1×50 | 14,20 | 515 | 71 | 0,386 |
| 1×70 | 16,30 | 712 | 82 | 0,272 |
| 1×95 | 18,40 | 916 | 92 | 0,206 |
| 1×120 | 20,40 | 1169 | 122 | 0,161 |
| 1×150 | 22,20 | 1453 | 133 | 0,129 |
| 1×185 | 24,90 | 1802 | 149 | 0,106 |
| 1×240 | 27,80 | 2327 | 167 | 0,0801 |
