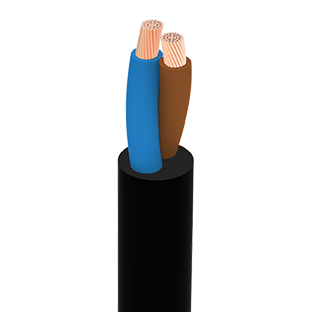

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
SEPERATOR: A suitable tape may be applied over the conductor
INSULATION: EI4 type cross-linked elastomeric compound, EPR (EN 50363-1)
SHEATH: EM3 type cross-linked elastomeric compound (EN 50363-2-1)
COLOR: Black
Çalışma Karakteristlikleri
RATED VOLTAGE: 300/500 V (U0/U)
AC TEST VOLTAGE: 2 kV
OPERATING TEMPETATURE: -25°C to +60°C (Without mechanical shocks)
(In flexing use)
CONDUCTOR SHORT-CIRCUIT TEMP.: 200°C. (Max. 5 sec)
MIN. INSTALLATION TEMP. : -25°C
MIN. BENDING RADIUS: EN 50565-1 Tab. 3
CURRENT CARRYING CAPACITIES: VDE 0298-4 Tab. 11
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (free movement) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 2×0,75 | 6,20 | 53 | 25 | 26,00 |
| 2×1 | 6,80 | 66 | 27 | 19,50 |
| 2×1,5 | 8,20 | 97 | 33 | 13,30 |
| 2×2,5 | 9,40 | 133 | 38 | 7,98 |
| 2×4 | 11,00 | 190 | 44 | 4,95 |
| 3×0,75 | 6,80 | 67 | 27 | 26,00 |
| 3×1 | 7,20 | 79 | 29 | 19,50 |
| 3×1,5 | 8,70 | 115 | 35 | 13,30 |
| 3×2,5 | 10,00 | 164 | 40 | 7,98 |
| 3×4 | 11,70 | 234 | 47 | 4,95 |
| 3×6 | 13,20 | 314 | 66 | 3,30 |
| 4×0,75 | 7,40 | 80 | 30 | 26,00 |
| 4×1 | 7,85 | 94 | 31 | 19,50 |
| 4×1,5 | 9,70 | 145 | 39 | 13,30 |
| 4×2,5 | 11,05 | 203 | 44 | 7,98 |
| 4×4 | 13,10 | 299 | 66 | 4,95 |
| 4×6 | 14,62 | 398 | 73 | 3,30 |
| 5×0,75 | 8,30 | 98 | 33 | 26,00 |
| 5×1 | 8,80 | 115 | 35 | 19,50 |
| 5×1,5 | 10,60 | 172 | 42 | 13,30 |
| 5×2,5 | 12,40 | 249 | 62 | 7,98 |
| 5×4 | 14,50 | 361 | 73 | 4,95 |
