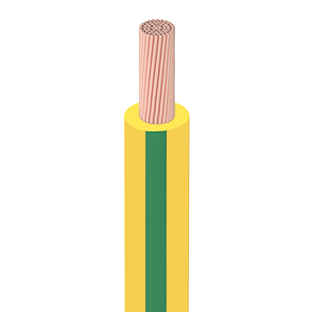

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
INSULATION: EI5 type cross-linked elastomeric compound, (EN 50363-5)
COLOR: All colors available
Çalışma Karakteristlikleri
RATED VOLTAGE: H05Z-K 300/500V – H07Z-K 450/750V (U0/U)
AC TEST VOLTAGE: 2,5 kV
OPERATING TEMPETATURE: -40°C to +90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 250°C (Max. 5 sec.)
MIN. INSTALLATION TEMP.: -5°C
MIN. BENDING RADIUS: EN 50565-1 Tab. 3
CURRENT CARRYING CAPACITIES: VDE 0298-4 Tab.5 & 11, IEC 60364-5-52 Tab. B.52.12
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (free movement) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| H05Z-K | ||||
| 1×0,50 | 2,10 | 9 | 6 | 39,00 |
| 1×0,75 | 2,30 | 12 | 7 | 26,00 |
| 1×1 | 2,50 | 14 | 8 | 19,50 |
| H07Z-K | ||||
| 1×1,5 | 2,90 | 19 | 9 | 13,30 |
| 1×2,5 | 3,55 | 30 | 11 | 7,98 |
| 1×4 | 4,05 | 45 | 12 | 4,95 |
| 1×6 | 4,60 | 63 | 14 | 3,30 |
| 1×10 | 6,10 | 108 | 18 | 1,91 |
| 1×16 | 7,10 | 160 | 21 | 1,21 |
| 1×25 | 9,20 | 249 | 28 | 0,78 |
| 1×35 | 10,10 | 338 | 30 | 0,554 |
| 1×50 | 12,00 | 474 | 36 | 0,386 |
| 1×70 | 13,90 | 677 | 56 | 0,272 |
| 1×95 | 15,90 | 884 | 64 | 0,206 |
| 1×120 | 17,60 | 1117 | 70 | 0,161 |
| 1×150 | 19,40 | 1388 | 78 | 0,129 |
| 1×185 | 21,70 | 1689 | 87 | 0,106 |
| 1×240 | 25,00 | 2278 | 100 | 0,0801 |
