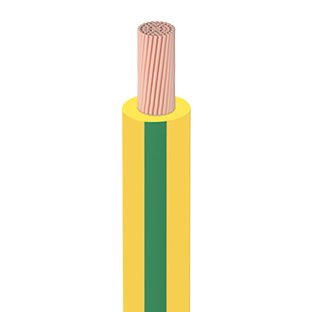

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
INSULATION: Halogen-Free compound, TI7 type (EN 50363-7)
COLOR: All colors available
Çalışma Karakteristlikleri
RATED VOLTAGE: H05Z1-K – 300/500V I H07Z1-K 450/750 V
AC TEST VOLTAGE: 2,5 kV
OPERATING TEMPETATURE: -30°C to +70°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 160°C
MIN. INSTALLATION TEMP.: -5°C
MIN. BENDING RADIUS: EN 50565-1 Tab. 3
CURRENT CARRYING CAPACITIES: VDE 0298-4 Tab. 5 & Tab. 11, IEC 60364-5-52 Tab. B52.2 & B52.4 & B52.10
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (free movement) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| H05Z1-K | ||||
| 1×0,50 | 2,10 | 9 | 8 | 39,0 |
| 1×0,75 | 2,30 | 12 | 9 | 26,0 |
| 1×1 | 2,50 | 15 | 10 | 19,5 |
| H07Z1-K | ||||
| 1×1,5 | 2,90 | 19 | 12 | 13,3 |
| 1×2,5 | 3,55 | 31 | 14 | 7,98 |
| 1×4 | 4,05 | 46 | 16 | 4,95 |
| 1×6 | 4,60 | 63 | 18 | 3,3 |
| 1×10 | 6,10 | 108 | 24 | 1,91 |
| 1×16 | 7,10 | 161 | 28 | 1,21 |
| 1×25 | 9,20 | 251 | 46 | 0,780 |
| 1×35 | 10,10 | 340 | 51 | 0,554 |
| 1×50 | 12,00 | 477 | 60 | 0,386 |
| 1×70 | 13,90 | 680 | 83 | 0,272 |
| 1×95 | 15,90 | 888 | 95 | 0,206 |
| 1×120 | 17,60 | 1121 | 106 | 0,161 |
| 1×150 | 19,40 | 1393 | 116 | 0,129 |
| 1×185 | 21,70 | 1696 | 130 | 0,106 |
| 1×240 | 25,00 | 2285 | 150 | 0,0801 |
| 1×300 | 27,80 | 2825 | 167 | 0,0641 |
