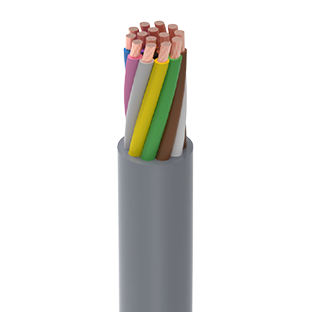

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
INSULATION: Halogen-Free compound (EN 50290-2-26)
CORE IDENTIFICATION: Up to including 10 cores DIN 47100 core colors
Above 10 cores black cores with or without a green yellow core
SHEATH: Halogen-Free compound (EN 50290-2-27)
COLOR: Grey
Çalışma Karakteristlikleri
RATED VOLTAGE: 300/500 V (U0/U)
AC TEST VOLTAGE: 2 kV
WORKING TEMPETATURE: -30°C to +70°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 160°C (Max. 5 sec)
MIN. BENDING RADIUS: Based on. VDE 0891 – Part 5
CURRENT CARRYING CAPACITIES: Based on VDE 0298-4 Tab.11
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (fixed installation) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 2×0,50 | 5,00 | 36 | 38 | 39,00 |
| 2×0,75 | 5,40 | 45 | 41 | 26,00 |
| 2×1 | 5,80 | 53 | 44 | 19,50 |
| 2×1,5 | 6,40 | 68 | 48 | 13,30 |
| 2×2,5 | 7,40 | 97 | 56 | 7,98 |
| 3×0,50 | 5,30 | 43 | 40 | 39,00 |
| 3×0,75 | 5,80 | 55 | 44 | 26,00 |
| 3×1 | 6,20 | 65 | 47 | 19,50 |
| 3×1,5 | 6,80 | 84 | 51 | 13,30 |
| 3×2,5 | 7,90 | 122 | 59 | 7,98 |
| 4×0,50 | 58,00 | 53 | 435 | 39,00 |
| 4×0,75 | 6,20 | 66 | 47 | 26,00 |
| 4×1 | 6,70 | 80 | 50 | 19,50 |
| 4×1,5 | 7,70 | 109 | 58 | 13,30 |
| 4×2,5 | 8,60 | 152 | 65 | 7,98 |
| 5×0,50 | 6,20 | 62 | 47 | 39,00 |
| 5×0,75 | 6,80 | 80 | 51 | 26,00 |
| 5×1 | 7,50 | 100 | 56 | 19,50 |
| 5×1,5 | 8,30 | 130 | 62 | 13,30 |
| 5×2,5 | 9,40 | 184 | 71 | 7,98 |
| 6×0,50 | 6,70 | 73 | 50 | 39,00 |
| 6×0,75 | 7,50 | 97 | 56 | 26,00 |
| 6×1 | 8,10 | 117 | 61 | 19,50 |
| 6×1,5 | 9,00 | 154 | 68 | 13,30 |
| 6×2,5 | 10,40 | 224 | 78 | 7,98 |
| 7×0,50 | 6,70 | 76 | 50 | 39,00 |
| 7×0,75 | 7,50 | 102 | 56 | 26,00 |
| 7×1 | 8,10 | 124 | 61 | 19,50 |
| 7×1,5 | 9,00 | 163 | 68 | 13,30 |
| 7×2,5 | 10,40 | 240 | 78 | 7,98 |
| 8×0,50 | 7,70 | 102 | 58 | 39,00 |
| 8×0,75 | 8,40 | 131 | 63 | 26,00 |
| 8×1 | 9,10 | 158 | 68 | 19,50 |
| 8×1,5 | 10,30 | 214 | 77 | 13,30 |
| 8×2,5 | 11,70 | 303 | 88 | 7,98 |
| 10×0,50 | 8,60 | 111 | 65 | 39,00 |
| 10×0,75 | 9,40 | 143 | 71 | 26,00 |
| 10×1 | 10,40 | 180 | 78 | 19,50 |
| 10×1,5 | 11,60 | 236 | 87 | 13,30 |
| 10×2,5 | 13,40 | 346 | 101 | 7,98 |
| 12×0,50 | 8,90 | 125 | 67 | 39,00 |
| 12×0,75 | 10,00 | 168 | 75 | 26,00 |
| 12×1 | 10,80 | 204 | 81 | 19,50 |
| 12×1,5 | 12,20 | 276 | 92 | 13,30 |
| 12×2,5 | 13,90 | 398 | 104 | 7,98 |
| 14×0,50 | 9,30 | 142 | 70 | 39,00 |
| 14×0,75 | 10,40 | 190 | 78 | 26,00 |
| 14×1 | 11,30 | 232 | 85 | 19,50 |
| 14×1,5 | 12,80 | 315 | 96 | 13,30 |
| 14×2,5 | 14,80 | 462 | 111 | 7,98 |
| 16×0,50 | 10,00 | 163 | 75 | 39,00 |
| 16×0,75 | 11,00 | 214 | 83 | 26,00 |
| 16×1 | 11,90 | 260 | 89 | 19,50 |
| 16×1,5 | 13,50 | 354 | 101 | 13,30 |
| 16×2,5 | 15,60 | 520 | 117 | 7,98 |
| 18×0,50 | 10,50 | 178 | 79 | 39,00 |
| 18×0,75 | 11,50 | 234 | 86 | 26,00 |
| 18×1 | 12,70 | 291 | 95 | 19,50 |
| 18×1,5 | 14,20 | 390 | 107 | 13,30 |
| 18×2,5 | 16,40 | 574 | 123 | 7,98 |
| 25×0,50 | 12,70 | 250 | 95 | 39,00 |
| 25×0,75 | 14,00 | 328 | 105 | 26,00 |
| 25×1 | 15,40 | 408 | 116 | 19,50 |
| 25×1,5 | 17,40 | 553 | 131 | 13,30 |
| 25×2,5 | 20,10 | 812 | 151 | 7,98 |
| 30×0,50 | 13,10 | 280 | 98 | 39,00 |
| 30×0,75 | 14,40 | 370 | 108 | 26,00 |
| 30×1 | 15,90 | 460 | 119 | 19,50 |
| 30×1,5 | 18,00 | 627 | 135 | 13,30 |
| 30×2,5 | 20,80 | 927 | 156 | 7,98 |
