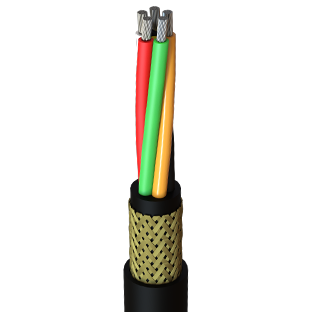

Kablo Yapısı
CONDUCTOR : Soft annealed stranded bare or tinned copper per IEEE1580
SEPARATOON TAPE : Polyester tape if required
INSULATİON / JACKET : Type P flame retardant cross-linked polyolefin compound, X110 meeting the requirements for IEEE 1580 Type P and UL1309
JACKET : CPE, Flame retardant, oil abrasion, chemical resistant thermosetting compound as required IEEE1580
ARMOR : Basket weave bronze wire armour per IEEE1580 and UL1309/ CSA C22.2 No.245. Tinned copper wire available by request
SHEATH : CPE, Flame retardant, oil abrasion, chemical and sunlight resistant thermosetting compound as required IEEE1580
OUTER SHEATH COLOR : Black
Çalışma Karakteristlikleri
REFERENCE STANDARD : IEEE 1580, UL 1309, CSA C22.2 No.245
TEMPERATURE RATİNG : Untel 125°C / UL CSA 110°C / IEEE 100°C
FLAME RETARDANT : IEEE 1202 & IEC 60332-3 cat. A
COLD BEND/IMPACT : -40°C / -35°C (CSA 22.2 No.03)
Teknik Özellikleri
| Size AWG | Number of Conductors | Diameter (inches) | Weight (lbs/Mft) | Ampacity 110ºC | Ampacity 100ºC |
|---|---|---|---|---|---|
| 16 | 7 | 0.656 | 330 | 12 | 11 |
| 16 | 8 | 0.712 | 340 | 12 | 11 |
| 16 | 10 | 0.812 | 445 | 9 | 8 |
| 16 | 16 | 0.942 | 602 | 9 | 8 |
| 16 | 20 | 1.017 | 724 | 9 | 8 |
| 16 | 24 | 1.146 | 809 | 8 | 7 |
| 16 | 37 | 1.271 | 989 | 6 | 6 |
| 16 | 44 | 1396 | 1175 | 6 | 6 |
| 16 | 60 | 1.521 | 1496 | 6 | 6 |
| 14 | 6 | 0.72 | 335 | 21 | 20 |
| 14 | 7 | 0.72 | 377 | 19 | 18 |
| 14 | 10 | 0.914 | 515 | 14 | 13 |
| 14 | 12 | 0.936 | 558 | 14 | 13 |
| 14 | 14 | 0.972 | 665 | 14 | 13 |
| 14 | 20 | 1.139 | 876 | 14 | 13 |
| 14 | 24 | 1.236 | 1132 | 12 | 11 |
| 14 | 30 | 1.294 | 1180 | 12 | 11 |
| 14 | 37 | 1.376 | 1405 | 11 | 10 |
| 14 | 44 | 1.516 | 1477 | 10 | 9 |
| 12 | 6 | 0.792 | 500 | 27 | 25 |
| 12 | 10 | 0.994 | 629 | 17 | 16 |
| 12 | 20 | 1.245 | 1055 | 17 | 16 |
| 12 | 24 | 1.356 | 1468 | 15 | 14 |
| 12 | 37 | 1.516 | 1677 | 13 | 12 |
