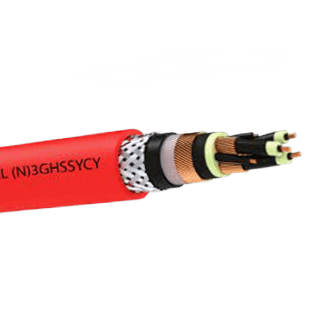

Kablo Yapısı

Conductors Flexible electrolytic copper wire acc. to DIN VDE 0295 – Class 5
Insulation Main Cores 3GI3 type EPR compound
Pilot Control Cores 3GI3 type EPR compound
Protective Conductor Made of plain copper wires or copper wire braiding laid-up concentrically around each main core
Electrical Field Control Extruded inner and outer rubber semi conductive layer For 3,6/6
Core Identification Main Cores Natural coloring, design acc. to DIN VDE 0250 Part.1
Pilot Cores Black colored and number coded
Lay Up Three main conductors laid-up with three pilot control cores in the outer interstice Protective cores are concentrically wrapped over insulation of power cores
Inner Sheath YM5 type PVC Compound
Monitoring Conductor Semi conductive tape + overall concentric lay of copper wires and syntetic tape over wires
Inner Sheath Armour PVC compound type DMV6 acc. to DIN VDE 0276-603 Galvanized steel wire braiding, coverage minimum 75 % ST2 Type to IEC 60502
Outer Sheath PVC compound type DMV6 acc. to DIN VDE 0276-603
Colour : Red or Black
