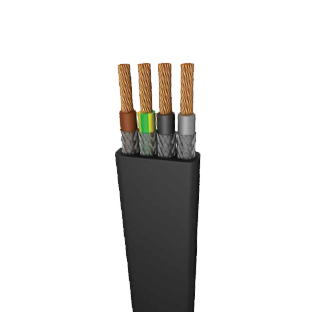

Kablo Yapısı
CONDUCTOR : Up to 25mm2 class 6 and 25 mm2 and above class 5 electrolytic annealed, plain copper wires (tinned conductor on request)
SEPERATOR : A suitable tape may be applied over the conductor
INSULATION : 3GI3 type rubber compound
CORE IDENTIFICATION : Acc. to VDE0293-308
SCREEN : Tinned copper wires braiding (covarage min %80)
SHEATH : 5GM3 type rubber compound
COLOR : Black (other colors on request)
Çalışma Karakteristlikleri
CONSTRUCTION : DIN VDE 0250-809
GENERAL REQUIREMENTS : DIN VDE 0250-1
GUIDE TO USE : DIN VDE 0298-3
ELECTRICAL TESTS : DIN VDE 0472-501, 503, 508
NON-ELECTRICAL TESTS : DIN VDE 0472-401, 402, 602, 303, 615
UNDER FIRE CONDITIONS TESTS : DIN VDE 0472-803, 804
FLAME RETARDANT : VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1
OIL RESISTANT : HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
