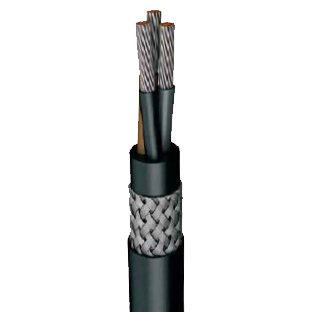

Kablo Yapısı
CONDUCTOR : Electrolytic annealed, class 5 stranded tinned copper wires (plain conductor on request)
SEPARATOR : A suitable tape may be applied over the conductor
INSULATION : 3GI3 Type elastomer compound
CORE IDENTIFICATION : Acc. to VDE 0293-308
SEPARATOR : A suitable tape may be applied over the laid-up
INNER SHEATH : Elastomer compound
SCREEN : Tinned copper wire braid app. 80% coverage
OUTER SHEATH : 5GM3 type elastomer compound
COLOR : Black (other colors on request)
Çalışma Karakteristlikleri
CONSTRUCTION : DIN VDE 0250-814
GENERAL REQUIREMENTS : DIN VDE 0250-1
GUİDE TO USE : DIN VDE 0298-3
ELECTRICAL TESTS : DIN VDE 0472-501, 502, 503, 508
NON-ELECTRICAL TESTS : DIN VDE 0472-401, 402, 602, 303, 615
UNDER FIRE CONDITIONS TESTS : DIN VDE 0472-803, 804
FLAME RETARDANT : VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1
OİL RESISTANT : HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
Teknik Özellikleri
RATED VOLTAGE : 0,6 / 1 kV
MAX. OPERATING AC VOLTAGE : 0,7 / 1.2 kV
MAX. OPERATING DC VOLTAGE : 0,9 / 1.8 kV
AC TEST VOLTAGE : 3,5 kV
CONDUCTOR OPERATİNG TEMPERATURE : Max. 90ºC
CONDUCTOR SHORT-CİRCUİT TEMPERATURE : Max. 250ºC
WORKING TEMPERATURE
FIXED : -40ºC … +80ºC
MOBILE : -25ºC … +80ºC
MIN BENDING RADIUS : VDE 0298-3 Tab. 3
CURRENT CARRYING CAPACITIES : VDE 0298-4
TRAVEL SPEED
IN FESTOON SYSTEMS : up to 240 m/min
MAX. TENSILE LOAD OF CABLE : 15 N / mm2
