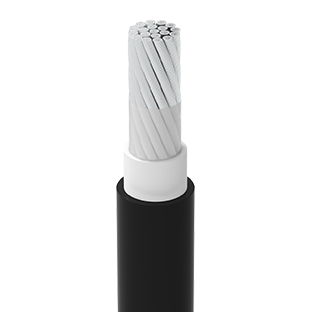

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded tinned copper wires
SEPERATOR: A suitable tape may be applied over the conductor, with semi-conductive layer for 3,6/6 kV
INSULATION: 3GI3 type cross-linked elastomeric compound (VDE 0207 – Part 20)
SHEATH: 5GM3 type cross-linked elastomeric compound (VDE 0207 – Part 21)
COLOR: Black
Çalışma Karakteristlikleri
RATED VOLTAGE: 600/1000 V – 1800/3000 V – 3600/6000 V (U0/U)
AC TEST VOLTAGE: 4 kV / 6kV / 11 kV
OPERATING TEMPETATURE
IN FLEXING USE: -25°C to +90°C
IN FIXED USE: -40°C to +90°C
MAX. CONDUCTOR OPERATING TEMP.: 90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 250°C (Max. 5 sec)
MIN. INSTALLATION TEMP.: -25°C
MIN. BENDING RADIUS: VDE 0298-3 Tab.3
CURRENT CARRYING CAPACITIES: VDE 0298-4 Tab. 15
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (fixed installation) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| NSGAFÖU 0,6/1kV | ||||
| 1×1,5 | 4,80 | 36 | 14 | 13,70 |
| 1×2,5 | 5,40 | 49 | 16 | 8,21 |
| 1×4 | 6,10 | 69 | 18 | 5,09 |
| 1×6 | 6,60 | 88 | 20 | 3,39 |
| 1×10 | 8,10 | 140 | 24 | 1,95 |
| 1×16 | 9,10 | 197 | 27 | 1,24 |
| 1×25 | 11,40 | 300 | 34 | 0,795 |
| 1×35 | 12,70 | 404 | 51 | 0,565 |
| 1×50 | 14,60 | 551 | 58 | 0,393 |
| 1×70 | 16,50 | 764 | 66 | 0,277 |
| 1×95 | 18,45 | 981 | 74 | 0,21 |
| 1×120 | 20,15 | 1223 | 81 | 0,164 |
| 1×150 | 21,95 | 1504 | 88 | 0,132 |
| 1×185 | 24,65 | 1840 | 99 | 0,108 |
| 1×240 | 27,95 | 2449 | 112 | 0,0817 |
| 1×300 | 30,75 | 3004 | 123 | 0,0654 |
| NSGAFÖU 1,8/3 kV | ||||
| 1×1,5 | 5,80 | 48 | 17 | 13,70 |
| 1×2,5 | 6,20 | 60 | 19 | 8,21 |
| 1×4 | 6,70 | 77 | 20 | 5,09 |
| 1×6 | 7,20 | 97 | 22 | 3,39 |
| 1×10 | 8,70 | 151 | 26 | 1,95 |
| 1×16 | 9,70 | 210 | 29 | 1,24 |
| 1×25 | 12,60 | 333 | 50 | 0,795 |
| 1×35 | 13,50 | 428 | 54 | 0,565 |
| 1×50 | 15,00 | 565 | 60 | 0,393 |
| 1×70 | 16,90 | 780 | 68 | 0,277 |
| 1×95 | 19,25 | 1015 | 77 | 0,21 |
| 1×120 | 20,95 | 1261 | 84 | 0,164 |
| 1×150 | 22,75 | 1545 | 91 | 0,132 |
| 1×185 | 25,05 | 1863 | 100 | 0,108 |
| 1×240 | 28,38 | 2475 | 114 | 0,0817 |
| 1×300 | 31,15 | 3033 | 125 | 0,0654 |
| NSGAFÖU 3,6/6 kV | ||||
| 1×1,5 | 8,70 | 84 | 26 | 13,70 |
| 1×2,5 | 9,10 | 98 | 27 | 8,21 |
| 1×4 | 9,60 | 117 | 29 | 5,09 |
| 1×6 | 11,10 | 164 | 33 | 3,39 |
| 1×10 | 11,60 | 200 | 35 | 1,95 |
| 1×16 | 13,10 | 278 | 52 | 1,24 |
| 1×25 | 15,40 | 394 | 62 | 0,795 |
| 1×35 | 16,40 | 496 | 66 | 0,565 |
| 1×50 | 17,90 | 639 | 72 | 0,393 |
| 1×70 | 22,40 | 987 | 90 | 0,277 |
| 1×95 | 24,60 | 1233 | 98 | 0,21 |
| 1×120 | 23,50 | 1335 | 94 | 0,164 |
| 1×150 | 24,90 | 1602 | 100 | 0,132 |
| 1×185 | 26,80 | 1901 | 107 | 0,108 |
| 1×240 | 30,50 | 2539 | 122 | 0,0817 |
| 1×300 | 33,10 | 3088 | 132 | 0,0654 |
