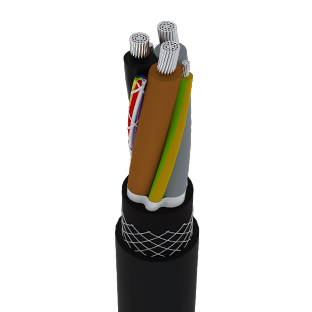

Kablo Yapısı

CONDUCTOR : Electrolytic annealed, class 5 stranded tinned copper wires (plain conductor on request)
SEPARATOR : A suitable tape may be applied over the conductor
INSULATION : Special HEPR based elastomer compound (min. 3GI3 quality)
CORE IDENTIFICATION : Light colored insulation with numbers printed in black for power and control cables,earth conductor green-yellow colored
OPTICAL FIBER : Fibre core diameter of fiber 9 μm, 62.5 μm or 50 μm; Diameter over cladding 125 μm; Diameter over coating 250 μm; Designs up to 24 fibers available.
FIBER CODING : Color coding of the fibers and buffering tube for idendification of the fiber type
FIBER COVERING ARRANGEMENT OF : Hollow core with filling compound, basic material ETFE
FIBER CORES : Six cores in one layer and specially laidup around the central support element
LAY UP : Three main conductors laid-up with two earth cores and fiber optic element in the outer interstice
INNER SHEATH : Special type of elastomer compound (better than GM1b)
SHEATH REINFORCEMENT : Antitorsion textile braided embeded sheath
OUTER SHEATH : Special rubber based heavy duty compound. Oil and chemical resistant, 5GM3/5GM5 abrasion and notch resistant
COLOR : Black or Yellow
