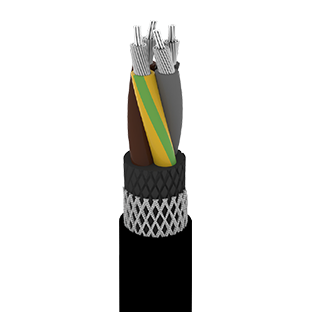

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded tinned copper wires with steel supporting elements in the center of conductor
SEPERATOR: A suitable tape may be applied over the conductor
INSULATION: 3GI3 type cross-linked elastomeric compound (VDE 0207 – Part 20)
INNER SHEATH: GM1b type cross-linked elastomeric compound (VDE 0207 – Part 21)
REINFORCEMENT: Antitorsion textile braided embeded sheath
OUTER SHEATH: 5GM3 type cross-linked elastomeric compound (VDE 0207 – Part 21)
COLOR: Black
Çalışma Karakteristlikleri
RATED VOLTAGE: 600 / 1000 V (U0/U)
AC TEST VOLTAGE: 3,5 kV
OPERATING TEMPETATURE
IN FLEXING USE: -25°C to +80°C
IN FIXED USE: -40°C to +80°C
MAX. CONDUCTOR OPERATING TEMP.: 90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 250°C
MIN. INSTALLATION TEMP.: -15°C
MIN. BENDING RADIUS: VDE 0298-3, Tab. 3
CURRENT CARRYING CAPACITIES: VDE 0298-4 Tab.11
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (free movement) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 3×10 | 23,00 | 905 | 115 | 1,95 |
| 3×16 | 24,50 | 1160 | 123 | 1,24 |
| 4×10 | 25,80 | 1104 | 129 | 1,95 |
| 4×16 | 31,50 | 1665 | 158 | 1,24 |
