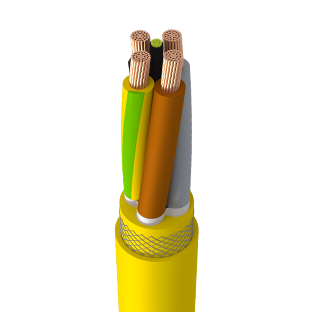

Kablo Yapısı
CONDUCTOR : Electrolytic annealed, class 5 stranded tinned copper wires (plain conductor on request)
SEPARATOR : A suitable tape may be applied over the conductor
INSULATION : Special HEPR based elastomer compound providing very high stability
LAY UP & SUPPORT ELEMENT : Central aramid (kevlar) strength member, cores laid up in concentric layers with shorth length of layers with shorth length of lay
CORE IDENTIFICATION : Acc. to VDE 0293-308
INNER SHEATH : Special type of elastomer compound better than GM1b
REINFORCEMENT : Antitorsion textile braided embeded sheath
OUTER SHEATH : Special rubber based heavy duty compound. Oil and chemical resistant, 5GM3/5GM5 abrasion and notch resistant
COLOR : Black or Yellow
Çalışma Karakteristlikleri
CONSTRUCTION : Based on DIN VDE 0250-814
GENERAL REQUIREMENTS : DIN VDE 0250-1
GUIDE TO USE : DIN VDE 0298-3
ELECTRICAL TESTS : DIN VDE 0472-501, 502, 503, 508
NON-ELECTRICAL TESTS : DIN VDE 0472-401, 402, 602, 303, 615
UNDER FIRE CONDITIONS TESTS : DIN VDE 0472-803, 804
FLAME RETARDANT : VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1
OİL RESISTANT : HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
Teknik Özellikleri
RATED VOLTAGE : 0,6 / 1 kV
MAX. OPERATING AC VOLTAGE : 0,7 / 1.2 kV
MAX. OPERATING DC VOLTAGE : 0,9 / 1.8 kV
AC TEST VOLTAGE : 3,5 kV
CONDUCTOR OPERATİNG TEMPERATURE : Max. 90ºC
CONDUCTOR SHORT-CİRCUİT TEMPERATURE : Max. 250ºC
WORKING TEMPERATURE
FIXED : -40ºC … +80ºC
MOBILE : -25ºC … +80ºC
MİN BENDİNG RADIUS : VDE 0298-3 Tab. 3
CURRENT CARRYING CAPACITIES : VDE 0298-4
TRAVEL SPEED
IN FESTOON SYSTEMS : up to 180 m / min horizantal up to 120 m / min vertical
MAX. TENSILE LOAD OF CABLE : 30 N / mm2
