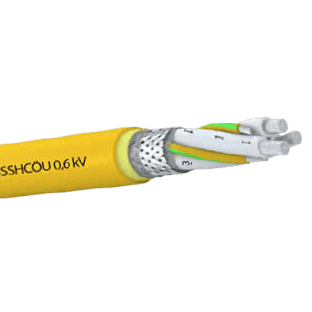

Kablo Yapısı
Conductor : Electrolytic, stranded, tinned copper wire DIN VDE 0295 Class 5
Insulation : All cores are insulated with 3GI3 compound
Lay Up : Three power cores laid up with the protective earth conductors split into three in the outer Interstices
Screen : Concentric tinned copper wire braiding
Inner Sheath : Special extruded elastomeric compound GM1b
Outer Sheath : Heavy-duty elastomer outer sheath 5GM5.
Color : Yellow or black
Çalışma Karakteristlikleri
Rated Voltage : 0,6 / 1 kV
Max. Permissible :
Operating Voltage AC : 0,7/1,2 kV
Max. Permissible :
Operating Voltage DC : 0,9/1,8 kV
AC Test Voltage : 3 kV
Min Bending Radius : Acc. to DIN VDE 0298 part 3
Current Carrying Capacity : According to DIN VDE 0298, Part 4
Working Temperature :
Fixed : -40ºC … +80ºC
Mobile : -25ºC … +80ºC
Max. Tensile Load of Cable : 15 N/mm²
Max. Torsion : 25º/m
Teknik Özellikleri
| Cross Sectlon (mm2) | Overall Dlameter Mln-Max (mm) | Approxlmate welght (kg/km) |
|---|---|---|
| 3 x 16 + 3 x 2.5 | 24.4 – 27.4 | 1200 |
| 3 x 25 + 3 x 4 | 28.2 – 31.2 | 1700 |
| 3 x 35 + 3 x 16/3 | 30.5 – 33.5 | 2200 |
| 3 x 50 + 3 x 25/3 | 36.0 – 39.0 | 2800 |
| 3 x 70 + 3 x 35/3 | 41.2 – 44.2 | 3850 |
| 3 x 95 + 3 x 50/3 | 45.7 – 48.7 | 4650 |
| 3 x 120 + 3×70/3 | 48.7 – 52.7 | 5800 |
| 3 x 150 + 3×70/3 | 55.7 – 59.7 | 7150 |
| 3 x 185 + 3×95/3 | 60.4 – 64.4 | 8500 |
| 3 x 240 + 3×120/3 | 68.2 – 72.2 | 10100 |
