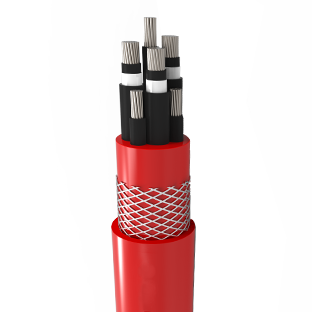

Kablo Yapısı
CONDUCTOR INSULATION : Electrolytic, stranded, tinned copper wire DIN VDE 0295 Class 5
ELECTRICAL FIELD CONTROL : 3GI3 type EPR Compound
PROTECTIVE-EARTH : Inner and outer semiconductive layer of semiconductive rubber
CONDUCTOR : Tinned copper conductor with semiconductive layer
LAY UP : Three main conductors laid-up with three control cores in the outer interstice
INNER SHEATH : Special EPR compound better than GM1b type
REINFORCEMENT : Embedded braid made of anti torsion synthetic threads
OUTER SHEATH : 5GM5 type elastomer compound, Red
Çalışma Karakteristlikleri
CONSTRUCTION : DIN VDE 0250-813
GENERAL REQUIREMENTS : DIN VDE 0250-1
GUIDE TO USE : DIN VDE 0298-3
ELECTRICAL TESTS : DIN VDE 0472-501, 503, 508
NON-ELECTRICAL TESTS : DIN VDE 0472-401, 402, 602, 303, 615
UNDER FIRE CONDITIONS TESTS : DIN VDE 0472-803, 804
FLAME RETARDANT : VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1
OIL RESISTANT : HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
Teknik Özellikleri
RATED VOLTAGE (KV) : 3,6/6 6/10 8,7/15 12/20
AC TEST VOLTAGE (KV) : 11 17 24 29
MAX. OPERATING AC VOLTAGE (KV) : 4,2 / 7,2 6,9 /12 10,4 /18 13,9 /24
MAX. OPERATING DC VOLTAGE (KV) : 5,4 /10,8 9 /18 13,5 /27 18 /36
MİN BENDING RADIUS : Acc. to DIN VDE 0298 part 3
CURRENT CARRYİNG CAPACITY : According to DIN VDE 0298, Part 4
WORKING TEMPERATURE
FIXED : -40ºC … +80ºC
MOBILE : -30ºC … +80ºC
MAX. TENSILE LOAD OF CABLE : 15 N / mmÇ
MAX. TORSION : ±25º/m
TRAVEL SPEED : up to. 200 m/min. horizantal
MİNİMUM DISTANCE FOR CHANGE OF DIRECTION : 20 X D
