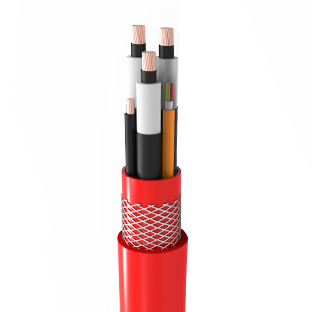

Kablo Yapısı

CONDUCTOR : Electrolytic, stranded, tinned copper wire DIN VDE 0295 Class 5
INSULATION : 3GI3 type EPR Compound
ELECTRICAL FIELD CONTROL : Inner and outer semiconductive layer of semiconductive rubber
PROTECTIVE-EARTH CONDUCTOR : Tinned copper conductor with semiconductive layer Fibre core diameter of fiber 9 μm, 62.5 μm or 50 μm;
OPTICAL FIBER : Diameter over cladding 125 μm; Diameter over coating 250 μm; Designs up to 24 fibers available.
FIBER CODING : Color coding of the fibers and buffering tube for idendification of the fiber type.
FIBER COVERING : Hollow core with filling compound, basic material ETFE
ARRANGEMENT OF FIBER CORES : Six cores in one layer and specially laid-up around the central support element.
LAY UP : Three main conductors laid-up with two control cores and fiber optic element in the outer interstice
INNER SHEATH : Special EPR compound better than GM1b type
REINFORCEMENT : Embedded braid made of anti torsion synthetic threads
OUTER SHEATH : 5GM5 type elastomer compound
COLOR : Red
