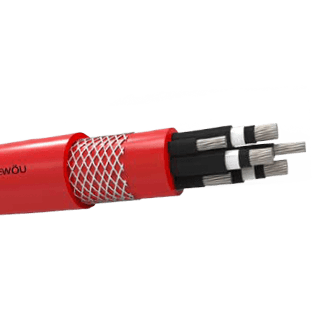

Kablo Yapısı
CONDUCTOR & INSULATION
Power Cores
Conductors Insulation : Tinned copper conductor DIN VDE 0295 class 5. Based on 3GI3 – EPR rubber and semi conductive rubber compound.
CONTROL CORES + MONITORING PE CORE(S)
Conductors Insulation : Tinned copper conductor DIN VDE 0295 class 5. 3GI3 type EPR compound and semi conductive rubber compound.
Cradle Separator : A shaped section of elastomeric material, semi conductive, with control wire in the center, designed to support the core assembly, fill the center interstice and provide a specified separation between individual power cores
Electrical Field Control : Inner and outer semiconductive layer of semiconductive rubber
Core Identification : Power cores naturally colored, Control cores blue colored
Lay Up : Three main conductors laid-up with three control cores & PE conductors in interstice over a cradle separator.
Inner Sheath : GM1b type EPR Compound
Screen / Armour : Flexible – pliable armour in helix of tinned copper and galvanised steel wires
Outer Sheath : 5GM5 type elastomer compound
Colour : Red
Çalışma Karakteristlikleri
Rated Voltage : 1,8/3 kV 3,6/6 kV
AC Test Voltage : 6 kV 11 kV
Max. Permissible
Operating Voltage AC : 2,1/3,6 kV 4,2/7,2 kV
Max. Permissible
Operating Voltage DC : 2,7/5,4 kV 5,4/10,8 kV
Min. Bending Radius : Acc. to DIN VDE 0298 part 3
Current Carrying Capacity : According to DIN VDE 0298, Part 4
Working Temperature
Fixed : -40ºC … +80ºC
Mobile : -25ºC … +80ºC
Min. Bending Radius : VDE 0298-3 Tab. 3
Current Carrying Capacities : VDE 0298-4
Teknik Özellikleri
| Cross Section (mm2) | Overall Diameter Mln-Max (mm) | Conductor Resistance At 20 °C (Ω/km) | Approxlmate welght (kg/km) | |
|---|---|---|---|---|
| 1,8/3 kV | ||||
| 3 x 25 + 3 x (1,5 ST KON+ 16/3 KON) | 42.1 – 45.3 | 0.795 | 3190 | |
| 3 x 35 + 3 x (1,5 ST KON+ 16/3 KON) | 46.5 – 49.7 | 0.565 | 3920 | |
| 3 x 50 + 3 x (1,5 ST KON+ 25/3 KON) | 50.4 – 53.5 | 0.393 | 4730 | |
| 3 x 70 + 3 x (1,5 ST KON+ 35/3 KON) | 55.8 – 60.0 | 0.277 | 6070 | |
| 3 x 95 + 3 x (1,5 ST KON+ 50/3 KON) | 61.5 – 65.7 | 0.21 | 7620 | |
| 3 x 120 + 3 x (1,5 ST KON+ 70/3 KON) | 66.0 – 70.3 | 0.164 | 9270 | |
| 3 x 150 + 3 x (1,5 ST KON+ 70/3 KON) | 71.8 – 76.0 | 0.132 | 10920 | |
| 3 x 185 + 3 x (1,5 ST KON+ 95/3 KON) | 76.2 – 80.3 | 0.108 | 12770 | |
| 3 x 240 + 3 x (1,5 ST KON+ 120/3 KON) | 84.1 – 89.4 | 0.0817 | 15860 | |
| 1,8/3 kV | ||||
| 3 x 50 + 3 x (35 + 35/3KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75 .L KON) | 66.0 – 71.0 | 0.368 | 8390 | |
| 3 x 70 + 3 x (50 + 50/3KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75 .L KON) | 74.0 – 79.0 | 0.272 | 10350 | |
| 3 x 95 + 3 x (70 + 70/3KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75 .L KON) | 85.0 – 90.0 | 0.206 | 13340 | |
| 3 x 35 + 3 x (1,5 ST KON + 25/3 KON) + .L KON | 46.0 – 51.0 | 0.554 | 3960 | |
| 3 x 50 + 3 x (1,5 ST KON + 25/3 KON) + .L KON | 51.0 – 55.0 | 0.368 | 4980 | |
| 3 x 70 + 3 x (1,5 ST KON + 35/3 KON) + .L KON | 57.0 – 62.0 | 0.272 | 6360 | |
| 3 x 95 + 3 x (1,5 ST KON + 50/3 KON) + .L KON | 64.0 – 69.0 | 0.206 | 8150 | |
| 3,6/6 kV | ||||
| 3 x 25 + 3 x (1,5 ST KON + 16/3 KON) | 47.3 – 50.4 | 0.795 | 3710 | |
| 3 x 35 + 3 x (1,5 ST KON + 16/3 KON) | 50.2 – 53.4 | 0.565 | 4320 | |
| 3 x 50 + 3 x (1,5 ST KON + 25/3 KON) | 53.5 – 57.7 | 0.393 | 5250 | |
| 3 x 70 + 3 x (1,5 ST KON + 35/3 KON) | 59.6 – 63.8 | 0.277 | 6600 | |
| 3 x 95 + 3 x (1,5 ST KON + 50/3 KON) | 64.3 – 68.5 | 0.21 | 8030 | |
| 3 x 120 + 3 x (1,5 ST KON + 70/3 KON) | 70.7 – 74.8 | 0.164 | 9990 | |
| 3 x 150 + 3 x (1,5 ST KON + 70/3 KON) | 74.5 – 78.8 | 0.132 | 11330 | |
| 3 x 185 + 3 x (1,5 ST KON + 95/3 KON) | 78.5 – 83.0 | 0.108 | 13280 | |
| 3 x 240 + 3 x (1,5 ST KON + 120/3 KON) | 86.8 – 92.10 | 0.0817 | 16380 | |
| 3,6/6 kV | ||||
| 3 x 35 + 3 x (35 + 35/3 KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75.L KON) | 69.0 – 74.0 | 0.554 | 7800 | |
| 3 x 50 + 3 x (50 + 50/3 KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75 .L KON) | 73.0 – 78.0 | 0.368 | 9340 | |
| 3 x 70 + 3 x (70 + 70/3 KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75 .L KON) | 80.0 – 85.0 | 0.272 | 11580 | |
| 3 x 95 + 3 x (95 + 95/3 KON) + 2 x (0,75ST KON) + 1 x (2 x 0,75 .L KON) | 89.0 – 94.0 | 0.206 | 13930 | |
| 3 x 35 + 3 x (1,5 ST KON + 25/3 KON) + .L KON | 46.0 – 51.0 | 0.554 | 3960 | |
| 3 x 50 + 3 x (1,5 ST KON + 25/3 KON) + .L KON | 51.0 – 55.0 | 0.368 | 4980 | |
| 3 x 70 + 3 x (1,5 ST KON + 35/3 KON) + .L KON | 57.0 – 62.0 | 0.272 | 6360 | |
| 3 x 95 + 3 x (1,5 ST KON + 50/3 KON) + .L KON | 64.0 – 69.0 | 0.206 | 8150 |
