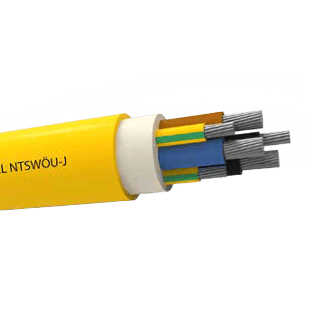

Kablo Yapısı
Conductor : Electrolytic, stranded, tinned copper wire DIN VDE 0295 Class 5
Insulation : All cores are insulated with 3GI3 compound (acc. to DIN VDE 0207 part 20).
Lay Up : All cores are laid up in contact with each other and interstitial ground cores.
Inner Sheath : Special elastomeric compound GM1b (acc. to DIN VDE 0207 Teil 21)
Outer Sheath : Heavy duty elastomer outer sheath 5GM5 (acc. to DIN VDE 0207 Teil 21)
Colour : Yellow or black
Çalışma Karakteristlikleri
Rated Voltage : 0,6 / 1 kV
Ac Test Voltage : 3 kV
Operating Temperature : Max. 90ºC
Short-Circuit Temperature : Max. 250ºC
Working Temperature:
Fixed : -40ºC … +80ºC
Mobile : -25ºC … +80ºC
Min Bending Radius : VDE 0298-3 Tab. 3
Current Carrying Capacities : VDE 0298-4
Teknik Özellikleri
| Cross Sectlon (mm2) | Overall Dlameter Mln-Max (mm) | Approxlmate welght (kg/km) |
|---|---|---|
| 3 x 25 + 3 x 25/3 | 40.0 – 44.0 | 2470 |
| 3 x 35 + 3 x 25/3 | 44.4 – 48.4 | 3150 |
| 3 x 50 + 3 x 25/3 | 47.7 – 51.7 | 3750 |
| 3 x 70 + 3 x 35/3 | 52.3 – 56.3 | 4690 |
| 3 x 95 + 3 x 50/3 | 59.9 – 63.9 | 6210 |
| 3 x 120 + 3 x 70/3 | 63.8 – 67.8 | 7430 |
| 3 x 150 + 3 x 70/3 | 69.2 – 73.2 | 8900 |
| 3 x 185 + 3 x 95/3 | 73.1 – 77.1 | 10330 |
