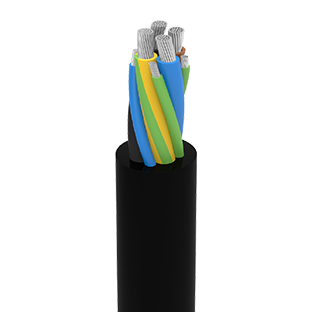

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain or tinned copper wires depends on request
SEPERATOR: A suitable tape may be applied over the conductor
INSULATION: EI4 type cross-linked elastomeric compound, EPR (EN 50363-1)
INNER SHEATH: EM2 or EM3 type cross-linked elastomeric compound (EN 50363-2-1) If outer sheath thickness is greater than 2,4 mm
OUTER SHEATH: Special water resistant elastomeric compound (Based on EN 50363-2-1)
COLOR: Black (other colors available on request)
Çalışma Karakteristlikleri
RATED VOLTAGE: 450/750 V (U0/U)
AC TEST VOLTAGE: 2,5 kV
OPERATING TEMPETATURE
IN FLEXING USE: -25°C to +60°C
IN FIXED USE: -40°C to +90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 200°C (Max. 5 sec.)
MIN. INSTALLATION TEMP.: -25°C
MIN. BENDING RADIUS: Based on EN 50565-1 Tab. 3
CURRENT CARRYING CAPACITIES: Based on VDE 0298-4 Tab.13 , IEC 60364-5-52 Tab. B.52.12 & Tab. C.52.1
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (free movement) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 3×1,5 | 10,80 | 163 | 43 | 13,30 |
| 4G2,5 | 17,30 | 405 | 87 | 7,98 |
| 4G4 | 19,50 | 565 | 98 | 4,95 |
| 4G6 | 21,00 | 752 | 126 | 3,30 |
| 4G10 | 22,50 | 833 | 135 | 1,91 |
| 4G16 | 26,00 | 1160 | 156 | 1,21 |
| 3×35+16+3×1,5 | 39,00 | 2522 | 195 | 0,57 |
| 4G1,5+3×1,5 | 16,50 | 380 | 83 | 13,30 |
| 4G2,5+3×1,5 | 20,00 | 543 | 120 | 7,98 |
| 4G6+2×1,5 | 22,00 | 763 | 132 | 3,30 |
| 4G10+3×1,5 | 23,00 | 865 | 138 | 1,91 |
| 7G2,5+3×1,5 | 22,00 | 678 | 132 | 7,98 |
| 7G4+3×1,5 | 26,00 | 1077 | 156 | 4,95 |
| 7G6+3×1,5 | 26,00 | 1154 | 156 | 3,30 |
| 7G25+3×1,5 | 38,00 | 2770 | 228 | 0,80 |
