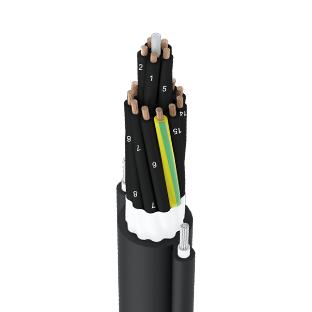

Kablo Yapısı
CONDUCTORS : Electrolytic, stranded, plain annealed copper wire Class 6 according to IEC 60228
INSULATION : Cross linked polyethylene compound (XLPE) or PVC on request
CORE IDENTIFICATION : Black cores with white numbers
LAY UP SUSPENSION : Cores laid up in concentric layers , over lay up textile tape wrapped
SUPPORT : Galvanized steel wire ropes at both sides
OUTER SHEATH : Special PVC Compound
COLOR : Black
Çalışma Karakteristlikleri
CONSTRUCTION : Generally to IEC 227 and VDE 0295
FLAME RETARDANT : IEC 60332-1
OIL RESISTANT : HD/EN/IEC 60811-2-1, DIN VDE 0473 part 811-2-1
Teknik Özellikleri
RATED VOLTAGE : 300 / 500 V
AC TEST VOLTAGE : 2000 V
MIN BENDING RADIUS : 10 x D (fixed application) 20 x D (mobile application)
CURRENT CARRYİNG CAPACITY : According to DIN VDE 0298-4
WORKING TEMPATURE :
FIXED INSTALLATİON : – 40 °C up to + 70 °C
MOBILE OPERATION : – 25 °C up to + 70 °C
MAX. TENSILE LOAD ON CONDUCTOR : 15 N / mm2
MAX. SUSPENDED HEIGHT : 80 meters
PULLING FORCE : 2100 N for each steel core
