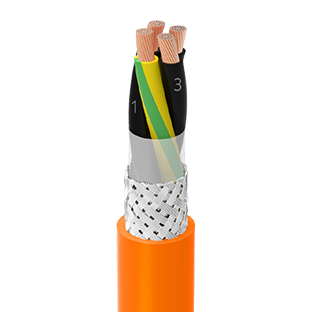

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
INSULATION: PVC compound, TI2 type (EN 50363-3) Black cores number coded with a green-yellow core
SEPERATOR: Polyester tape or textile tape
SCREEN: Tinned copper wire braiding
OUTER SHEATH: Thermoplastic polyurethane TMPU (EN 50363-10-2)
COLOR: Grey, Orange or Black Other colors on request
Çalışma Karakteristlikleri
RATED VOLTAGE: 300 /500 V (U0/U)
AC TEST VOLTAGE: 2 kV
WORKING TEMPETATURE
IN FLEXING USE: -5°C to +70°C
IN FIXED USE: -40°C to +80°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 160°C (Max. 5 sec)
MIN. INSTALLATION TEMP.: -40°C
MIN. BENDING RADIUS
FLEXIBLE USE: 12,5 x Outer DIameter
FIXED INSTALLATION: 5 x Outer DIameter
CURRENT CARRYING CAPACITIES: Based on VDE 0298-4 Tab.11 and Tab.13
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (fixed installation) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 2×0,50 | 5,90 | 32 | 30 | 39,00 |
| 2×0,75 | 6,30 | 38 | 32 | 26,00 |
| 2×1 | 6,70 | 45 | 34 | 19,50 |
| 2×1,5 | 7,30 | 56 | 37 | 13,30 |
| 3×0,50 | 6,20 | 40 | 31 | 39,00 |
| 3×0,75 | 6,70 | 50 | 34 | 26,00 |
| 3×1 | 7,10 | 58 | 36 | 19,50 |
| 3×1,5 | 7,70 | 74 | 39 | 13,30 |
| 4×0,50 | 6,70 | 48 | 34 | 39,00 |
| 4×0,75 | 7,10 | 60 | 36 | 26,00 |
| 4×1 | 7,60 | 71 | 38 | 19,50 |
| 4×1,5 | 8,60 | 96 | 43 | 13,30 |
| 5×0,50 | 7,20 | 58 | 36 | 39,00 |
| 5×0,75 | 7,70 | 74 | 39 | 26,00 |
| 5×1 | 8,50 | 92 | 43 | 19,50 |
| 5×1,5 | 9,30 | 120 | 47 | 13,30 |
| 7×0,50 | 7,60 | 71 | 38 | 39,00 |
| 7×0,75 | 8,40 | 95 | 42 | 26,00 |
| 7×1 | 9,00 | 115 | 45 | 19,50 |
| 7×1,5 | 10,00 | 150 | 50 | 13,30 |
| 12×0,50 | 9,80 | 116 | 49 | 39,00 |
| 12×0,75 | 10,70 | 151 | 54 | 26,00 |
| 12×1 | 11,70 | 187 | 59 | 19,50 |
| 12×1,5 | 13,00 | 250 | 65 | 13,30 |
| 18×0,50 | 11,40 | 170 | 57 | 39,00 |
| 18×0,75 | 12,40 | 222 | 62 | 26,00 |
| 18×1 | 13,70 | 275 | 69 | 19,50 |
| 18×1,5 | 15,20 | 370 | 76 | 13,30 |
| 21×0,50 | 12,00 | 190 | 60 | 39,00 |
| 21×0,75 | 13,20 | 250 | 66 | 26,00 |
| 21×1 | 14,40 | 310 | 72 | 19,50 |
| 21×1,5 | 16,00 | 415 | 80 | 13,30 |
| 25×0,50 | 13,70 | 230 | 69 | 39,00 |
| 25×0,75 | 15,00 | 305 | 75 | 26,00 |
| 25×1 | 16,40 | 377 | 82 | 19,50 |
| 25×1,5 | 18,20 | 505 | 91 | 13,30 |
