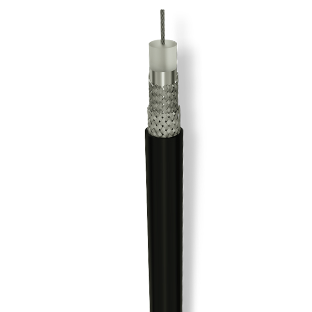

Kablo Yapısı
Inner Conductor: 7×0.75 mm stranded silver coated copper wire
Insulation: Solid Polyethylene compound
Screen 1: Aluminium/poleysther/aluminium tape
Screen 2: Silver coated copper wire braiding
Outer Sheath: Halogen free flame retardant compound (SHF1)
Çalışma Karakteristlikleri
Overall diameter: Ø 10,90 ± 0,20 mm
Cable Weight: 228 kg/km
Min. Bending Radius: 90 mm
Max. Tensile Strength: 30 N
Operating Temperature: – 20°C / +70°C
Construction: EN 50117 (MIL-C-17)
Flame Retardant: EN 60332-1-2, IEC 60332-3-242
Halogen Content: IEC 60754-1/2, IEC 60684-2
Smoke Emission: IEC 61034-1/2
Teknik Özellikleri
Max. Conductor Resistance: < 6,0 Ω / km
Min. Insulation Resistance: 2 GΩ x km
Capacitance: < 100 ± 3 pF / m
Impedance: 50 ± 2 Ω
Velocity of Propagation: 66 %
Test Voltage: 5 kV
Operating Voltage: 1000 V
Attenuations at 20°C
10 MHz: 2.00 dB / 100m
50 MHz: 4.30 dB / 100m
100 MHz: 6.00 dB / 100m
200 MHz: 8.20 dB / 100m
300 MHz: 10.10 dB / 100m
500 MHz: 13.50 dB / 100m
1000 MHz: 20.30 dB / 100m
2500 MHz: 37.40 dB / 100m
