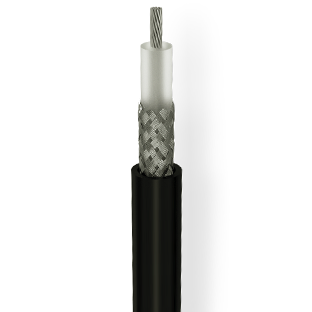

Kablo Yapısı
Inner Conductor: 19 x 0,18 mm stranded tinned copper wire
Insulation: Solid Polyethylene compound
Screen: Tinned copper wire braiding
Outer Sheath: Halogen free flame retardant compound (SHF1)
Çalışma Karakteristlikleri
Overall diameter: Ø 4,95 ± 0,20 mm
Cable Weight: 45 kg/km
Min. Bending radius: 45 mm
Max. Tensile Strength: 30 N
Operating Temperature: – 20°C / +70°C
Construction: EN 50117-1 (MIL-C-17)
Flame Retardant: EN 60332-1-2, IEC 60332-3-24
Halogen Content: IEC 60754-1/2, IEC 60684-2
Smoke Emission: IEC 61034-1/2
Teknik Özellikleri
Max. Conductor Resistance: < 38,5 Ω / km
Min. Insulation Resistance: 1 GΩ x km
Capacitance: < 98 ± 4 pF / m
Capacitance Unbalance: 1600 pF / km
Impedance: 50 ± 2 Ω
Velocity of Propagation: 66%
Test Voltage: 5 kV
Operating Voltage: 1000 V
Attenuations at 20°C
10MHz: 4.70 dB / 100m
100MHz: 15.70 dB / 100m
200MHz: 23.00 dB / 100m
400MHz: 34.50 dB / 100m
1000MHz: 60.00 dB / 100m
