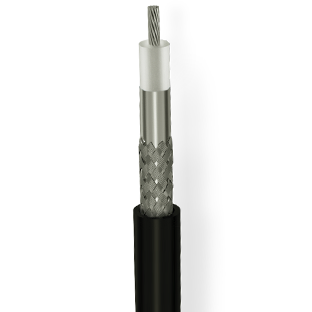

Kablo Yapısı
Inner Conductor: 19 x 0,18 mm stranded tinned copper wire
Insulation: Solid Polyethylene compound
Screen 1: Aluminium/poleysther/aluminium tape
Screen 2: Tinned copper wire braiding
Outer Sheath: Halogen free flame retardant compound (SHF1)
Çalışma Karakteristlikleri
Overall diameter: Ø 5,00 ± 0,20 mm
Cable Weight: 46 kg/km
Min. Bending Radius: 45 mm
Max. Tensile Strength: 30 N
Operating Temperature: – 20°C / +70°C
Construction: EN 50117-1 (MIL-C-17)
Flame Retardant: EN 60332-1-2, IEC 60332-3-24
Halogen Content: IEC 60754-1/2, IEC 60684-2
Smoke Emission: IEC 61034-1/2
Teknik Özellikleri
Max. Conductor Resistance: < 38,5 Ω / km
Min. Insulation Resistance: 1 GΩ x km
Capacitance: < 98 ± 4 pF / m
Impedance: 50 ± 2 Ω
Velocity of Propagation: 66%
Test Voltage: 5 kV
Operating Voltage: 1000 V
Attenuations at 20°C
10 MHz: 4.50 dB / 100m
100 MHz: 15.50 dB / 100m
200 MHz: 23.80 dB / 100m
400 MHz: 34.30 dB / 100m
1000 MHz: 59.82 dB / 100m
