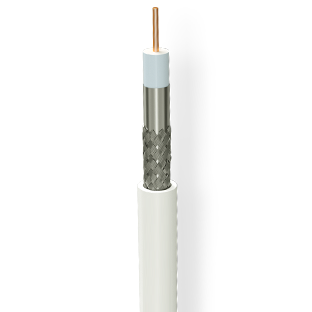

Kablo Yapısı
Inner Conductor: 0,80 mm bare solid copper
Insulation: Gas Injected Skin/Foam/Skin Polyethylene compound
Screen 1: Aluminum foil (bonded to the Insulation)
Screen 2: Aluminum wire braiding
Outer Sheath: Halogen free flame retardant compound (SHF1)
Çalışma Karakteristlikleri
Overall diameter: Ø 5,80 ± 0,20 mm
Cable Weight: 35 kg/km
Min. Bending Radius: 50 mm
Max. Tensile Strength: 30 N
Screening Class: Class C
Operating Temperature: – 20°C / +70°C
Construction: EN 50117-2-4 (MIL-C-17)
Flame Retardant: EN 60332-1-2, IEC 60332-3-24
Halogen Content: IEC 60754-1/2, IEC 60684-2
Smoke Emission: IEC 61034-1/2
Teknik Özellikleri
Max. Conductor Resistance: < 34,5 Ω / km
Min. Insulation Resistance: 2 GΩ x km
Capacitance: < 53 ± 3 pF / m
Impedance: 75 ± 2 Ω
Transfer Impedance at 5-30 Mhz: ≤ 50 mΩ/m
Velocity of Propagation: 83 ± 3 %
Test Voltage: 5 kV
Operating Voltage: 1000 V
Attenuations at 20°C
5 MHz: 2.20 dB / 100m
50 MHz: 5.80 dB / 100m
230 MHz: 11.90 dB / 100m
470 MHz: 17.70 dB / 100m
860 MHz: 23.90 dB / 100m
1000 MHz: 25.75 dB / 100m
1200 MHz: 33.20 dB / 100m
2150 MHz: 38.50 dB / 100m
3000 MHz: 48.75 dB / 100m
Return Loss at 20°C
5-470 MHz: > 26 dB
470-1200 MHz: > 23 dB
1200-2000 MHz: > 20 dB
2000-3000 MHz: > 18 dB
Screen Attenuations
30-1200 MHz: ≥ 75 dB
1200-2000 MHz: ≥ 65 dB
2000-3000 MHz: ≥ 55 dB
