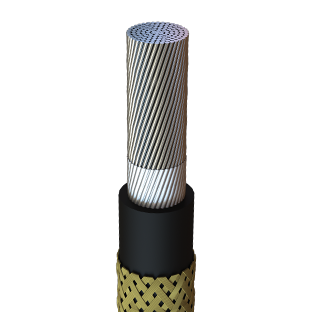

Kablo Yapısı
CONDUCTOR : Soft annealed stranded bare or tinned copper per IEEE1580
SEPARATION TAPE : Polyester tape if required
INSULATION / JACKET : Type P flame retardant cross-linked polyolefin compound, X110 meeting the requirements for IEEE 1580 Type P and UL1309
ARMOR : Basket weave bronze wire armour per IEEE1580 and UL1309/ CSA C22.2 No.245. Tinned copper wire available by request
OUTER SHEATH COLOR : Black
Çalışma Karakteristlikleri
REFERENCE STANDARD : IEEE 1580, UL 1309, CSA C22.2 No.245
TEMPERATURE RATING : Untel 125°C / UL CSA 110°C / IEEE 100°C
FLAME RETARDANT : IEEE 1202 & IEC 60332-3 cat. A
COLD BEND/IMPACT : -40°C / -35°C (CSA 22.2 No.03)
Teknik Özellikleri
| Size AWG | Diameter (inches) | Weight (lbs/Mft) | 110ºC A | 100ºC A |
|---|---|---|---|---|
| 18 | 0.193 | 29 | 17 | 16 |
| 16 | 0.203 | 32 | 24 | 23 |
| 14 | 0.218 | 45 | 39 | 37 |
| 12 | 0.237 | 58 | 49 | 45 |
| 10 | 0.257 | 93 | 61 | 58 |
| 8 | 0.305 | 116 | 77 | 72 |
| 6 | 0.345 | 155 | 100 | 96 |
| 4 | 0.427 | 230 | 134 | 128 |
| 2 | 0.493 | 303 | 178 | 169 |
| 1 | 0.534 | 406 | 205 | 194 |
| 1/0 | 0.598 | 494 | 236 | 227 |
| 2/0 | 0.665 | 579 | 274 | 262 |
| 3/0 | 0.713 | 776 | 317 | 300 |
| 4/0 | 0.86 | 889 | 369 | 351 |
| 262 | 0.938 | 1147 | 431 | 407 |
| 313 | 1.004 | 1332 | 482 | 455 |
| 373 | 1.068 | 1576 | 540 | 516 |
| 444 | 1.144 | 1816 | 622 | 588 |
| 535 | 1.262 | 2246 | 660 | 630 |
| 646 | 1.35 | 2559 | 765 | 731 |
| 777 | 1.445 | 3013 | 861 | 822 |
| 1111 | 1.718 | 4129 | 1074 | 1025 |
