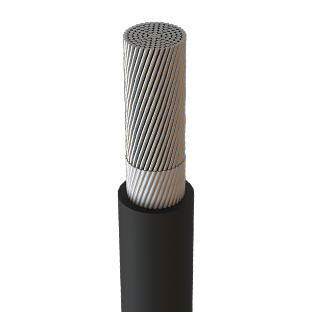

Kablo Yapısı
CONDUCTOR : Soft annealed stranded bare or tinned copper per IEEE1580
SEPARATION TAPE : Polyester tape if required
INSULATION/JACKET : Type P flame retardant cross-linked polyolefin compound, X110 meeting the requirements for IEEE 1580 Type P and UL1309
OUTER SHEATH COLOR : Black
Çalışma Karakteristlikleri
REFERENCE STANDARD : IEEE 1580, UL 1309, CSA C22.2 No.245
TEMPERATURE RATİNG : Untel 125°C / UL CSA 110°C / IEEE 100°C
FLAME RETARDANT : IEEE 1202 & IEC 60332-3 cat. A
COLD BEND/IMPACT : -40°C / -35°C (CSA 22.2 No.03)
Teknik Özellikleri
| Size AWG | Diameter (inches) | Weight (lbs/Mft) | 110ºC A | 100ºC A |
|---|---|---|---|---|
| 18 | 0.232 | 29 | 17 | 16 |
| 16 | 0.245 | 34 | 24 | 23 |
| 14 | 0.259 | 42 | 39 | 37 |
| 12 | 0.281 | 53 | 49 | 45 |
| 10 | 0.302 | 68 | 61 | 58 |
| 8 | 0.354 | 95 | 77 | 72 |
| 6 | 0.384 | 130 | 100 | 96 |
| 4 | 0.484 | 210 | 134 | 128 |
| 2 | 0.576 | 314 | 178 | 169 |
| 1 | 0.629 | 393 | 205 | 194 |
| 1/0 | 0.687 | 485 | 236 | 227 |
| 2/0 | 0.737 | 596 | 274 | 262 |
| 3/0 | 0.788 | 709 | 317 | 300 |
