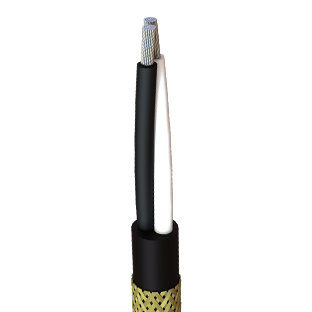

Kablo Yapısı
CONDUCTOR : Soft annealed stranded bare or tinned copper per IEEE1580
SEPARATION TAPE : Polyester tape if required
INSULATION : Type P flame retardant cross-linked polyolefin compound, X110 meeting the requirements for IEEE 1580 Type P and UL1309
SHEATH : CPE, Flame retardant, oil abrasion, chemical and sunlight resistant thermosetting compound as required IEEE1580
JACKET : CPE, Flame retardant, oil abrasion, chemical and sunlight resistant thermosetting compound as required IEEE1580
ARMOR : Basket weave bronze wire armour per IEEE1580 and UL1309/CSA C22.2 No.245. Tinned copper wire available by request
Çalışma Karakteristlikleri
REFERENCE STANDARD : IEEE 1580, UL 1309, CSA C22.2 No.245
TEMPERATURE RATING : Untel 125°C / UL CSA 110°C / IEEE 100°C
FLAME RETARDANT : IEEE 1202 & IEC 60332-3 cat. A
COLD BEND/IMPACT : -40°C / -35°C (CSA 22.2 No.03)
Teknik Özellikleri
| Size AWG | Diameter (inches) | Weight (lbs/Mft) | Ampacity 110ºC | Ampacity 100ºC |
|---|---|---|---|---|
| 16 | 0.4 | 141 | 21 | 19 |
| 14 | 0.43 | 165 | 33 | 31 |
| 12 | 0.47 | 190 | 41 | 40 |
| 10 | 0.51 | 230 | 52 | 49 |
| 8 | 0.65 | 327 | 68 | 64 |
| 6 | 0.73 | 424 | 90 | 85 |
| 4 | 0.937 | 664 | 115 | 110 |
| 1/0 | 1.293 | 1334 | 208 | 199 |
| 4/0 | 1.643 | 2271 | 323 | 307 |
