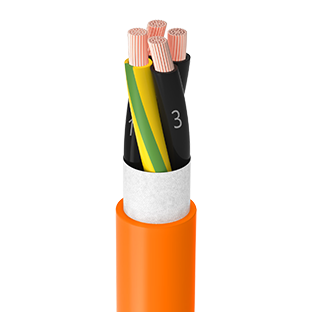

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
INSULATION: Special thermoplastic polyester elastomer, TPE-E Black cores number coded with a green-yellow core
SEPERATOR: Textile tape or polyester tape
OUTER SHEATH: Thermoplastic polyurethane TMPU (EN 50363-10-2)
COLOR: Grey, Orange or Black Other colors on request
Çalışma Karakteristlikleri
RATED VOLTAGE: 300 /500 V (U0/U)
AC TEST VOLTAGE: 2 kV
OPERATING TEMPETATURE
IN FLEXING USE: -40°C to +90°C
IN FIXED USE: -50°C to +90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 250°C (Max. 5 sec.)
MIN. INSTALLATION TEMP.: -40°C
MIN. BENDING RADIUS
FLEXIBLE USE: 10 x Outer Diameter
FIXED INSTALLATION: 4 x Outer Diameter
CURRENT CARRYING CAPACITIES: Based on VDE 0298-4 Tab.11 and Tab.13
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (fixed installation) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 2×0,50 | 5,60 | 38 | 22 | 39,00 |
| 2×0,75 | 6,00 | 47 | 24 | 26,00 |
| 2×1 | 6,40 | 55 | 26 | 19,50 |
| 2×1,5 | 7,00 | 70 | 28 | 13,30 |
| 2×2,5 | 8,40 | 103 | 34 | 7,98 |
| 2×4 | 9,40 | 145 | 38 | 4,95 |
| 2×6 | 11,00 | 200 | 44 | 3,30 |
| 3×0,50 | 5,90 | 45 | 24 | 39,00 |
| 3×0,75 | 6,40 | 57 | 26 | 26,00 |
| 3×1 | 6,80 | 67 | 27 | 19,50 |
| 3×1,5 | 7,40 | 85 | 30 | 13,30 |
| 3×2,5 | 8,90 | 130 | 36 | 7,98 |
| 3×4 | 10,00 | 181 | 40 | 4,95 |
| 3×6 | 11,70 | 256 | 47 | 3,30 |
| 4×0,50 | 6,40 | 55 | 26 | 39,00 |
| 4×0,75 | 6,80 | 67 | 27 | 26,00 |
| 4×1 | 7,30 | 78 | 29 | 19,50 |
| 4×1,5 | 8,30 | 110 | 33 | 13,30 |
| 4×2,5 | 9,70 | 160 | 39 | 7,98 |
| 4×4 | 11,10 | 231 | 44 | 4,95 |
| 4×6 | 12,80 | 322 | 51 | 3,30 |
| 5×0,50 | 6,90 | 65 | 28 | 39,00 |
| 5×0,75 | 7,40 | 82 | 30 | 26,00 |
| 5×1 | 8,00 | 96 | 32 | 19,50 |
| 5×1,5 | 9,00 | 131 | 36 | 13,30 |
| 5×2,5 | 10,60 | 195 | 42 | 7,98 |
| 5×4 | 12,20 | 285 | 49 | 4,95 |
| 5×6 | 14,30 | 405 | 57 | 3,30 |
| 7×0,50 | 7,30 | 77 | 29 | 39,00 |
| 7×0,75 | 7,90 | 100 | 32 | 26,00 |
| 7×1 | 8,70 | 120 | 35 | 19,50 |
| 7×1,5 | 9,60 | 161 | 38 | 13,30 |
| 7×2,5 | 11,60 | 250 | 46 | 7,98 |
| 12×0,50 | 9,50 | 130 | 38 | 39,00 |
| 12×0,75 | 10,40 | 170 | 42 | 26,00 |
| 12×1 | 11,40 | 206 | 46 | 19,50 |
| 12×1,5 | 12,60 | 280 | 50 | 13,30 |
| 12×2,5 | 15,30 | 430 | 61 | 7,98 |
| 18×0,50 | 11,10 | 185 | 44 | 39,00 |
| 18×0,75 | 12,10 | 240 | 48 | 26,00 |
| 18×1 | 13,10 | 290 | 52 | 19,50 |
| 18×1,5 | 14,80 | 396 | 59 | 13,30 |
| 18×2,5 | 18,00 | 620 | 72 | 7,98 |
| 21×0,50 | 11,70 | 210 | 47 | 39,00 |
| 21×0,75 | 12,80 | 275 | 51 | 26,00 |
| 21×1 | 14,00 | 331 | 56 | 19,50 |
| 21×1,5 | 15,60 | 450 | 62 | 13,30 |
| 21×2,5 | 19,20 | 710 | 77 | 7,98 |
| 25×0,50 | 13,10 | 255 | 52 | 39,00 |
| 25×0,75 | 14,60 | 345 | 58 | 26,00 |
| 25×1 | 15,80 | 411 | 63 | 19,50 |
| 25×1,5 | 17,80 | 565 | 71 | 13,30 |
| 25×2,5 | 21,90 | 885 | 88 | 7,98 |
| 27×0,50 | 13,10 | 261 | 52 | 39,00 |
| 27×0,75 | 14,60 | 355 | 58 | 26,00 |
| 27×1 | 15,80 | 430 | 63 | 19,50 |
| 27×1,5 | 17,80 | 581 | 71 | 13,30 |
| 27×2,5 | 21,90 | 920 | 88 | 7,98 |
| 32×0,50 | 14,20 | 310 | 57 | 39,00 |
| 32×0,75 | 15,60 | 410 | 62 | 26,00 |
| 32×1 | 17,10 | 506 | 68 | 19,50 |
| 32×1,5 | 19,30 | 686 | 77 | 13,30 |
| 32×2,5 | 23,50 | 1071 | 94 | 7,98 |
| 36×0,50 | 14,70 | 335 | 59 | 39,00 |
| 36×0,75 | 16,10 | 445 | 64 | 26,00 |
| 36×1 | 17,70 | 555 | 71 | 19,50 |
| 36×1,5 | 20,00 | 755 | 80 | 13,30 |
| 36×2,5 | 24,60 | 1190 | 98 | 7,98 |
