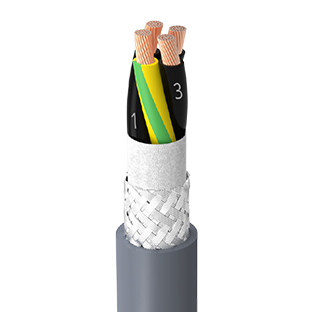

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
INSULATION: Special thermoplastic polyester elastomer, TPE-E Black cores number coded with a green-yellow core
SEPERATOR: Polyester tape or textile tape
SCREEN: Tinned copper wire braiding
OUTER SHEATH: Thermoplastic polyurethane TMPU (EN 50363-10-2)
COLOR: Grey, Orange or Black Other colors on request
Çalışma Karakteristlikleri
RATED VOLTAGE: 300 /500 V (U0/U)
AC TEST VOLTAGE: 2 kV
OPERATING TEMPETATURE
IN FLEXING USE: -5°C to +70°C
IN FIXED USE: -50°C to +90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 250°C
MIN. INSTALLATION TEMP.: -40°C
MIN. BENDING RADIUS
FLEXIBLE USE: 12,5 x Outer Diameter
FIXED INSTALLATION: 5 x Outer Diameter
CURRENT CARRYING CAPACITIES: Based on VDE 0298-4 Tab.11 and Tab.13
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (fixed installation) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 2×0,50 | 6,50 | 47 | 33 | 39,00 |
| 2×0,75 | 6,70 | 55 | 34 | 26,00 |
| 2×1 | 7,10 | 62 | 36 | 19,50 |
| 2×1,5 | 7,90 | 77 | 40 | 13,30 |
| 2×2,5 | 9,30 | 107 | 47 | 7,98 |
| 2×4 | 10,30 | 143 | 52 | 4,95 |
| 2×6 | 11,90 | 195 | 60 | 3,30 |
| 3×0,50 | 6,80 | 56 | 34 | 39,00 |
| 3×0,75 | 7,10 | 66 | 36 | 26,00 |
| 3×1 | 7,50 | 76 | 38 | 19,50 |
| 3×1,5 | 8,50 | 100 | 43 | 13,30 |
| 3×2,5 | 9,80 | 136 | 49 | 7,98 |
| 3×4 | 11,10 | 190 | 56 | 4,95 |
| 3×6 | 12,60 | 260 | 63 | 3,30 |
| 4×0,50 | 7,30 | 66 | 37 | 39,00 |
| 4×0,75 | 7,50 | 78 | 38 | 26,00 |
| 4×1 | 8,00 | 91 | 40 | 19,50 |
| 4×1,5 | 9,20 | 120 | 46 | 13,30 |
| 4×2,5 | 10,60 | 170 | 53 | 7,98 |
| 4×4 | 12,00 | 240 | 60 | 4,95 |
| 4×6 | 14,00 | 340 | 70 | 3,30 |
| 5×0,50 | 7,80 | 77 | 39 | 39,00 |
| 5×0,75 | 8,30 | 100 | 42 | 26,00 |
| 5×1 | 8,90 | 115 | 45 | 19,50 |
| 5×1,5 | 9,90 | 145 | 50 | 13,30 |
| 5×2,5 | 11,70 | 210 | 59 | 7,98 |
| 5×4 | 13,10 | 295 | 66 | 4,95 |
| 5×6 | 15,30 | 420 | 77 | 3,30 |
| 7×0,50 | 8,40 | 95 | 42 | 39,00 |
| 7×0,75 | 8,80 | 116 | 44 | 26,00 |
| 7×1 | 9,40 | 137 | 47 | 19,50 |
| 7×1,5 | 10,50 | 176 | 53 | 13,30 |
| 7×2,5 | 12,50 | 261 | 63 | 7,98 |
| 12×0,50 | 10,40 | 140 | 52 | 39,00 |
| 12×0,75 | 11,30 | 185 | 57 | 26,00 |
| 12×1 | 12,10 | 216 | 61 | 19,50 |
| 12×1,5 | 13,80 | 295 | 69 | 13,30 |
| 12×2,5 | 16,50 | 440 | 83 | 7,98 |
| 18×0,50 | 12,00 | 196 | 60 | 39,00 |
| 18×0,75 | 12,80 | 251 | 64 | 26,00 |
| 18×1 | 14,10 | 316 | 71 | 19,50 |
| 18×1,5 | 15,80 | 415 | 79 | 13,30 |
| 18×2,5 | 19,40 | 655 | 97 | 7,98 |
| 21×0,50 | 12,60 | 216 | 63 | 39,00 |
| 21×0,75 | 13,80 | 295 | 69 | 26,00 |
| 21×1 | 14,80 | 351 | 74 | 19,50 |
| 21×1,5 | 16,80 | 470 | 84 | 13,30 |
| 21×2,5 | 20,40 | 731 | 102 | 7,98 |
| 25×0,50 | 14,30 | 270 | 72 | 39,00 |
| 25×0,75 | 15,40 | 350 | 77 | 26,00 |
| 25×1 | 16,80 | 425 | 84 | 19,50 |
| 25×1,5 | 18,80 | 556 | 94 | 13,30 |
| 25×2,5 | 23,10 | 880 | 116 | 7,98 |
| 27×0,50 | 14,30 | 280 | 72 | 39,00 |
| 27×0,75 | 15,40 | 360 | 77 | 26,00 |
| 27×1 | 16,80 | 441 | 84 | 19,50 |
| 27×1,5 | 18,80 | 581 | 94 | 13,30 |
| 27×2,5 | 23,10 | 920 | 116 | 7,98 |
| 32×0,50 | 15,20 | 321 | 76 | 39,00 |
| 32×0,75 | 16,60 | 422 | 83 | 26,00 |
| 32×1 | 17,90 | 510 | 90 | 19,50 |
| 32×1,5 | 20,50 | 705 | 103 | 13,30 |
| 32×2,5 | 24,90 | 1080 | 125 | 7,98 |
| 36×0,50 | 15,70 | 351 | 79 | 39,00 |
| 36×0,75 | 17,10 | 465 | 86 | 26,00 |
| 36×1 | 18,50 | 562 | 93 | 19,50 |
| 36×1,5 | 21,20 | 780 | 106 | 13,30 |
| 36×2,5 | 25,80 | 1200 | 129 | 7,98 |
