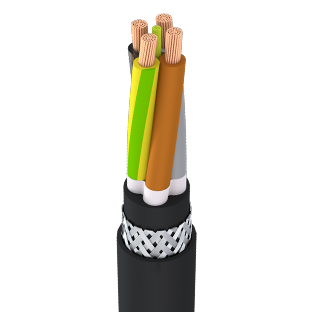

Kablo Yapısı
CONDUCTOR : Electrolytic, stranded, plain annealed copper wire Class 5 according to IEC 60228
INSULATION : All cores are insulated with halogen free compound, based on polyester
CORE IDENTIFICATION : Up to 5 cores: colored in accordance with DIN VDE 0293-308; From 6 cores: white cores with black numbers
LAY UP : Central textile strength member, cores laid up in concentric layers with shorth length of lay
INNER SHEATH : Halogen Free, flame retardant Polyurethane compound
SCREEN : Tinned copper wire braiding, coverage min. 80 %
OUTHER SHEATH : Halogen Free, flame retardant Polyurethane compound Black – Yellow – Orange
Çalışma Karakteristlikleri
CONSTRUCTION : Generally to IEC 60502
ELECTRICAL TESTS : DIN VDE 0472-501, 502, 503, 508
NON-ELECTRICAL TESTS : DIN VDE 0472-401, 402, 602, 303, 615
GENERAL REQUIREMENTS : DIN VDE 0250-1 and IEC 60502
FLAME RETARDANT : IEC 60332-1
OİL RESISTANT : HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
Teknik Özellikleri
RATED VOLTAGE : 0,6 / 1 kV
MAX. OPERATİNG AC VOLTAGE : 0,7 / 1.2 kV
MAX. OPERATING DC VOLTAGE : 0,9 / 1.8 kV
AC TEST VOLTAGE : 3,5 kV
MİN BENDING RADİUS : 6 x D (fixed application) 8 x D (mobile applications)
CURRENT CARRYİNG CAPACITIES : According to DIN VDE 0298-4
MAX. SURFACE TEMPERATURE : Fixed installation – 50 °C up to + 80 °C
MAX. TEMPERATURE AT THE CONDUCTOR : Mobile operation – 40 °C up to + 80 °C in service + 90 °C under short-circuit conditions + 250 °C
MAX. TENSILE LOAD ON CONDUCTOR : 15 N / mmÇ
MAX. TORSION : ±25 º / m
TRAVEL SPEED
IN FESTOON SYSTEMS : up to 200 m / min
IN REELİNG APPLICATIONS : up to 60 m / min. horizantal
IN CHAIN SYSTEMS : up to 200 N / mm
