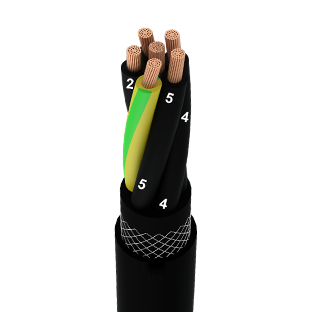

Kablo Yapısı
CONDUCTOR : Electrolytic, stranded, plain annealed copper wire Class 5 according to IEC 60228
INSULATION : All cores are insulated with halogen free compound, based on polyester.
CORE IDENTIFICATION : Up to 5 cores: colored in accordance with DIN VDE 0293-308; from 6 cores: white cores with black numbers
LAY UP : Central textile strength member, cores laid up in concentric layers with shorth length of lay
INNER SHEATH : Halogen Free, flame retardant Polyurethane compound
REINFORCEMENT : Anti-twisting element – Textile braiding
OUTER SHEATH : Halogen Free, flame retardant Polyurethane compound
COLOR : Yellow, black or orange
Çalışma Karakteristlikleri
CONSTRUCTION : Generally to IEC 60502 & VDE 0250
ELECTRICAL TESTS : DIN VDE 0472-501, 502, 503, 508
NON-ELECTRICAL TESTS : DIN VDE 0472-401, 402, 602, 303, 615
GENERAL REQUIREMENTS : DIN VDE 0250-1 and IEC 60502
FLAME RETARDANT : IEC 60332-1
OIL RESISTANT : HD/EN/IEC 60811-2-1, DIN VDE 0473-811-2-1
Teknik Özellikleri
RATED VOLTAGE : 0,6 / 1 kV
AC TEST VOLTAGE : 3,5 / kV
MAX. OPERATING AC VOLTAGE : 0,7 / 1,2 kV
MAX. OPERATING DC VOLTAGE : 0,9 / 1,8 kV
MIN BENDING RADİUS : 6 x D (fixed aplication), 8 x D (mobile aplication)
CURRENT CARRYING CAPACITY : According to DIN VDE 0298, Part 4
WORKING TEMPATURE
FIXED : -50ºC … +90ºC
MOBILE : -40ºC … +90ºC
MAX. TENSILE LOAD OF CABLE : 20 N / mm²
MAX. TORSION : ±25º/m
TRAVEL SPEED
IN FESTOON SYSTEMS : up to 200 m/min.
IN REELİNG APPLİCATİON : up to 200 m/min. horizantal
MINIMUM DISTANCE FOR CHANGE OF DIRECTION : 20 X D
