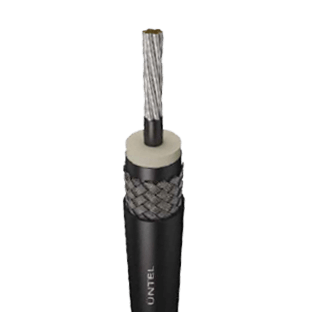

Kablo Yapısı
CONDUCTOR :Strand of annealed tinned or bare copper wires According to IEC C 60228 – Class 2 AWG types to ASTM B8 – Class B or Class C
SEMICONDUCTIVE LAYER : Extruded Semiconductive material
INSULATION: EPR- Ethylene propylene rubber material
SEMICONDUCTIVE LAYER: Semiconductive tape hellically applied
SCREEN : Tinned Copper wire braiding with minimum 80% coverage
OUTER JACKET: CPE-XL-HD or CR – HD or Neoprene or other suitable jacketing material according to NEMA WC74 / IECA S-93-639
Çalışma Karakteristlikleri
CONDUCTOR OPERATING TEMPERATURE : -25ºC / +90ºC
RATED VOLTAGE : 5 kV
TEST VOLTAGE : 18 kV
BENDING RADIUS : 12 x Outer Diameter
STANDARD OF TEST :ICEA S-93-639 / NEMA WC74 FAA Specifrcation for L824-AC No. 150/5345-7F
Teknik Özellikleri
| Construction (*) | Cross Section |
Overall Diameter mm |
Approx Weight kg/km |
Max. Resistance of Conductors at at 20 °C ( ohm/km) |
Current Carrying Capacity at 45 ºC (A) |
|---|---|---|---|---|---|
| BCL2 / EXSC / EPR / SCT / BCUB / CPE-X | 1X6 mm² | 12,4 | 240 | 3,08 | 52 |
| TCL2 / EXSC / EPR / SCT / TCUB / CPE-X | 1X6 mm² | 12,4 | 240 | 3,11 | 52 |
| BAWGB / EXSC / EPR / SCT /BCUB / CPE-X | 1X8 AWG | 13,0 | 278 | 2,14 | 64 |
| TAWGB / EXSC / EPR / SCT / TCUB / CPE-X | 1X8 AWG | 13,0 | 278 | 2,22 | 64 |
| BAWGB / EXSC / EPR / SCT / BCUB / CPE-X | 1X6 AWG | 14,0 | 346 | 1,35 | 85 |
| TAWGB / EXSC / EPR / SCT / TCUB / CPE-X | 1X6 AWG | 14,0 | 346 | 1,40 | 85 |
