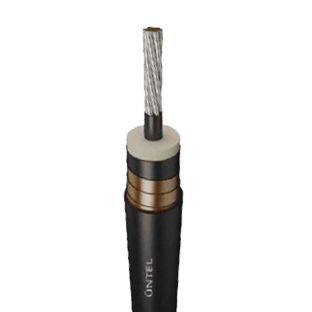

Kablo Yapısı
CONDUCTOR : Stranded annealed tinned or bare copper wires According to IEC 60228 – Class 2 AWG types to ASTM B8 – Class B or Class C
SEMICONDUCTIVE LAYER : Extruded Semiconductive material
INSULATION : XLPE – Cross linked polyethylene material
SEMICONDUCTIVE LAYER : Semiconductive tape helically applied
SCREEN : Minimum 20% overlap and 100% coverage helically applied Copper Tape
OUTER JACKET : PVC or PE or HF (halogen free) or other suitable jacketing material according to NEMA WC74 / ICEA S-93-639.
Çalışma Karakteristlikleri
CONDUCTOR OPERATING TEMPERATURE : -25ºC / +90ºC
RATED VOLTAGE : 5 kV
TEST VOLTAGE : 18 kV
BENDING RADIUS : 12 x Outer Diameter
STANDARD OF TEST : ICEA S-93-639 / NEMA WC74 FAA Specification for L 824 – AC No. 150 / 5345-7F
Teknik Özellikleri
| Construction (*) | Cross Section |
Overall Diameter mm |
Approx Weight kg/km |
Max. Resistance of Conductors at 20 ºC (ohm/km) |
Current Carrying Capacity at 45 ºC (A) |
|---|---|---|---|---|---|
| BCL2 / EXSC / XLPE / SCT / CUT / PE | 1X6 mm² | 11.9 | 182 | 3.08 | 52 |
| BCL2 / EXSC / XLPE / SCT / CUT / PVC | 1X6 mm² | 11.9 | 211 | 3.08 | 52 |
| TCL2 / EXSC / XLPE / SCT / CUT / PE | 1X6 mm² | 11.9 | 182 | 3.11 | 52 |
| TCL2 / EXSC / XLPE / SCT / CUT / PVC | 1X6 mm² | 11.9 | 211 | 3.11 | 52 |
| BAWGB / EXSC / XLPE / SCT /CUT / PE | 1X8 AWG | 12.8 | 210 | 2.14 | 64 |
| BAWGB / EXSC / XLPE / SCT / CUT / PVC | 1X8 AWG | 12.8 | 242 | 2.14 | 64 |
| TAWGB / EXSC / XLPE / SCT / CUT / PE | 1X8 AWG | 12.8 | 210 | 2.22 | 64 |
| TAWGB / EXSC / XLPE / SCT / CUT / PVC | 1X8 AWG | 12.8 | 242 | 2.22 | 64 |
| BAWGB / EXSC / XLPE / SCT / CUT / PE | 1X6 AWG | 13.6 | 277 | 1.35 | 85 |
| BAWGB / EXSC / XLPE / SCT / CUT / PVC | 1X6 AWG | 13.6 | 305 | 1.35 | 85 |
| TAWGB / EXSC / XLPE / SCT / CUT / PE | 1X6 AWG | 13.6 | 277 | 1.40 | 85 |
| TAWGB / EXSC / XLPE / SCT / CUT / PVC | 1X6 AWG | 13.6 | 305 | 1.40 | 85 |
