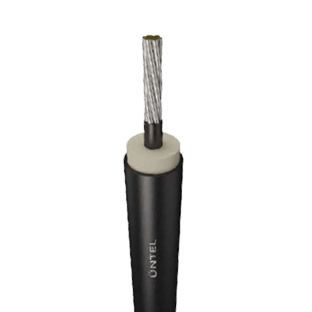

Kablo Yapısı
CONDUCTOR : Strand of annealed tinned or bare copper wires According to IEC C 60228 – Class 2 AWG types to ASTM B8 – Class B or Class C
SEMICONDUCTIVE LAYER : Extruded Semiconductive material
INSULATION : XLPE – Cross linked polyethylene material
OUTER JACKET : PVC or PE or HF (halogen free) or other suitable jacketing material according to NEMA WC71 / IECA S-96-659.
Çalışma Karakteristlikleri
CONDUCTOR OPERATING TEMPERATURE : -25ºC / +90ºC
RATED VOLTAGE : 5 kV
TEST VOLTAGE : 18 kV
BENDING RADIUS : 5 x Outer Diameter
STANDARD OF TEST : ICEA S-96-659 / NEMA WC71 FAA Specification for L 824 – AC No.150 / 5345-7F
Teknik Özellikleri
| Construction (*) | Cross Section |
Overall Diameter mm |
Approx Weight kg/km |
Max. Resistance of Conductors at 20 ºC (ohm/km) |
Current Carrying Capacity at 45 ºC (A) |
|---|---|---|---|---|---|
| BCL2 / EXSC / XLPE / PE | 1X6 mm² | 11,0 | 162 | 3,08 | 52 |
| BCL2 / EXSC / XLPE / PVC | 1X6 mm² | 11,0 | 192 | 3,08 | 52 |
| TCL2 / EXSC / XLPE / PE | 1X6 mm² | 11,0 | 162 | 3,11 | 52 |
| TCL2 / EXSC / XLPE / PVC | 1X6 mm² | 11,0 | 192 | 3,11 | 52 |
| BAWGB / EXSC / XLPE / PE | 1X8 AWG | 11,9 | 183 | 2,14 | 64 |
| BAWGB / EXSC / XLPE / PVC | 1X8 AWG | 11,9 | 207 | 2,14 | 64 |
| TAWGB / EXSC / XLPE / PE | 1X8 AWG | 11,9 | 183 | 2,22 | 64 |
| TAWGB / EXSC / XLPE / PVC | 1X8 AWG | 11,9 | 207 | 2,22 | 64 |
| BAWGB / EXSC / XLPE / PE | 1X6 AWG | 13,0 | 249 | 1,35 | 85 |
| BAWGB / EXSC / XLPE / PVC | 1X6 AWG | 13,0 | 263 | 1,35 | 85 |
| TAWGB / EXSC / XLPE / PE | 1X6 AWG | 13,0 | 249 | 1,40 | 85 |
| TAWGB / EXSC / XLPE / PVC | 1X6 AWG | 13,0 | 263 | 1,40 | 85 |
