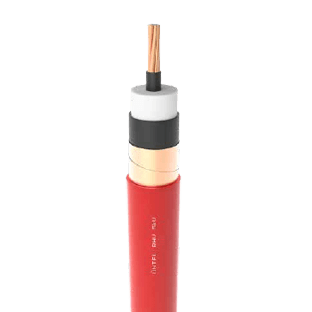

Kablo Yapısı
CONDUCTOR : Stranded annealed tinned or bare copper wires According to IEC 60228 – Class 2
SEMICONDUCTIVE LAYER : Extruded semiconductor layer mixture firmly adhered to insulation.
INSULATION : XLPE – Cross linked polyethylene material
SEMICONDUCTIVE LAYER : Extruded Semiconductive peelable material
SCREEN : Copper tape of nominal thickness 0.1 mm helically applied on the semiconductive layer over the insulation, with a minimum overlap of 15%.
OUTER JACKET : LSZH material – Halogen-free Flame Retardant polyolefin (Z1)
COLOR : Red or other colors on request
Çalışma Karakteristlikleri
OPERATING TEMPERATURE : -25ºC / +90ºC
RATED VOLTAGE : 5 kV
TEST VOLTAGE : 17,5 kV (5 min.)
BENDING RADIUS : 15 x Outer Diameter
STANDARDS : UNE 21161:2017 IEC 60502-2
FLAME RETARDANT : IEC 60332-1, IEC 60332/3 Cat A
CPR CLASS – EN 50575:2014+A12016 : Cca – s1b, d2, a1
Teknik Özellikleri
| Construction (*) | Cross Section |
Max. Overall Diameter (mm) |
Approximate Weight (kg / km) |
Max Resistance of Conductors at 20ºC (ohm / km) |
Current Carrying Capacity at 30ºC (A) |
|---|---|---|---|---|---|
| BCL2 / EXSC / XLPE / EXSC / CUT / LSZH |
1×6 mm² | 18,5 | 370 | 3,08 | 52 |
