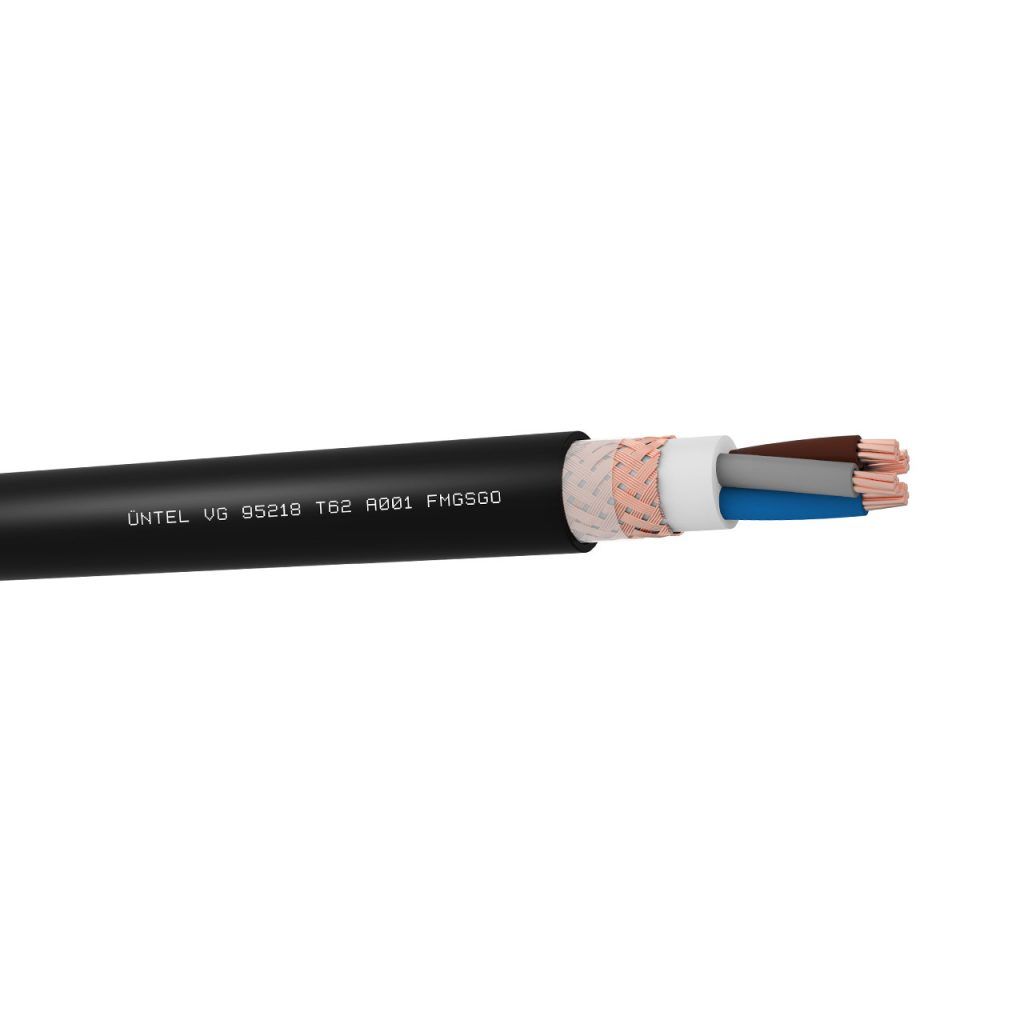

Kablo Yapısı
Conductor: Electrolytic, stranded, copper wire to DIN EN 60228 Class 2
Insulation: Halogen free cross linked polymeric compound
Core Identification: According to VG 95218 part 62
Covering of Cores: Halogen free compound or binder tape
Screen: Copper wire braiding screen with separating foil over braid
Outer Sheath: Halogen free, cross-linked elastomeric compound.
Çalışma Karakteristlikleri
Construction: VG 95218 Part 62
Max Permissible Operating Voltage: AC 250V / DC 355V
AC Test Voltage: 2 kV
Working Temperature: -30°C / + 90°C
Min Bending Radius (Fixed): 5xD
General Requirements and Tests: VG 95218-2
Current Ratings: VG 95218-5
Flame Retardant: IEC 60332 /1, IEC 60332 / 3-24 Cat. C
Halogen Content: IEC 60754 / 1 – 2
Smoke Density: IEC 61034 / 1-2 ( DIN EN 50268/1-2)
Teknik Özellikleri
| Designation as per VG95218 Part.60 Dash No | Cores x size | Number of the single wires (min) | Wall thickness of insulation nominal | Wall thickness of sheath | Outer Diameter (min- max.) | Cable Weight Approx. | Min. Bending Radius Fixed Installed | Conductor resistance at (20ºC) (max) | Insulation resistance (20ºC) (min) | |
|---|---|---|---|---|---|---|---|---|---|---|
| No. x mm² | mm | mm | mm | mm | kg/km | mm | (Ω/km) | (MΩ·km) | ||
| A008 | 1x2x0,75 | 7 | 0.4 | 0.8 | 6 | 7.2 | 62 | 36 | 53.2 | 800 |
| A001 | 2x2x0,75 | 7 | 0.4 | 0.8 | 6.7 | 8 | 97 | 40 | 53.2 | 800 |
| A002 | 4x2x0,75 | 7 | 0.4 | 1 | 9.6 | 11.2 | 190 | 56 | 53.2 | 800 |
| A003 | 6x2x0,75 | 7 | 0.4 | 1 | 10.8 | 12.5 | 230 | 63 | 53.2 | 800 |
| A004 | 8x2x0,75 | 7 | 0.4 | 1 | 11.9 | 13.6 | 300 | 68 | 53.2 | 800 |
| A005 | 10x2x0,75 | 7 | 0.4 | 1 | 13.7 | 15.4 | 335 | 77 | 53.2 | 800 |
| A006 | 14x2x0,75 | 7 | 0.4 | 1 | 14.9 | 16.7 | 450 | 84 | 53.2 | 800 |
| A007 | 16x2x0,75 | 7 | 0.4 | 1 | 16.1 | 18.1 | 505 | 91 | 53.2 | 800 |
