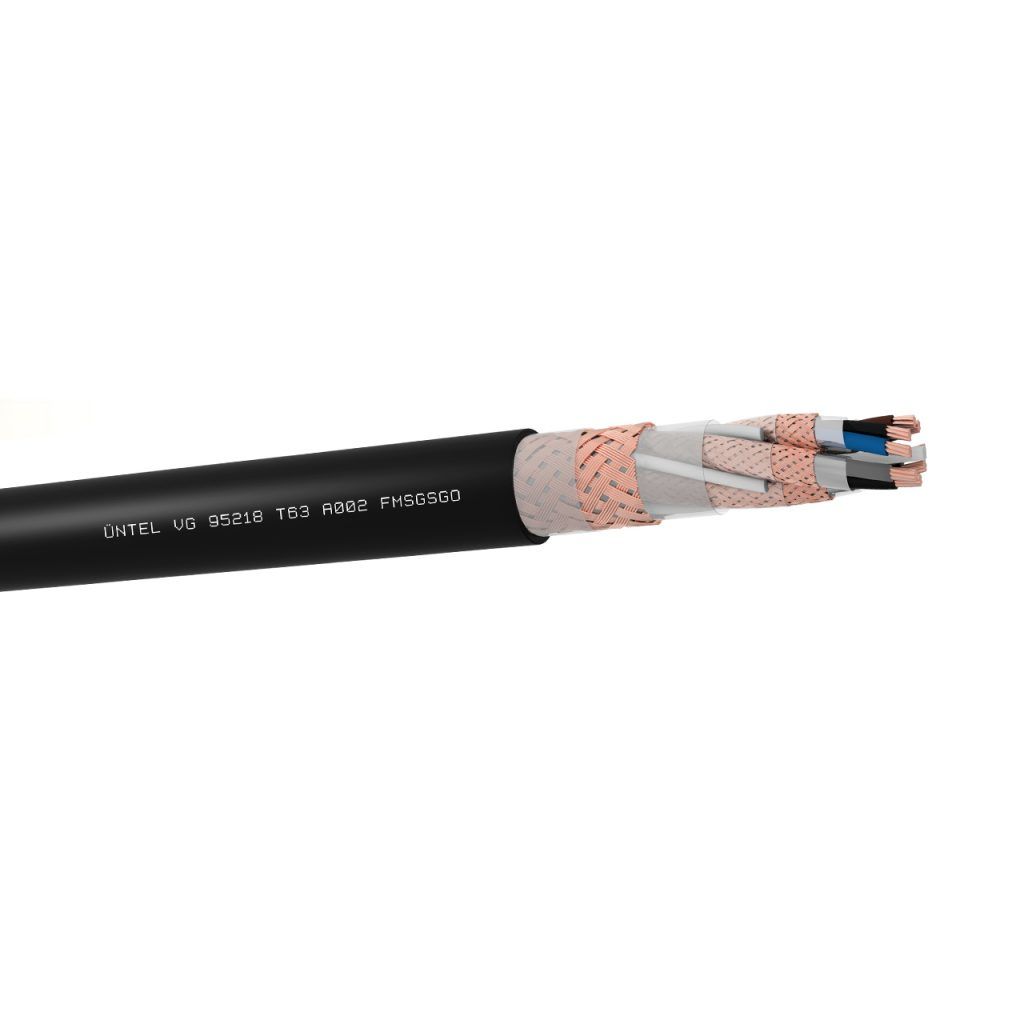

Kablo Yapısı
CONDUCTOR : Electrolytic, stranded, copper wire to DIN EN 60228 Class 2
INSULATION: Halogen free cross linked polymeric compound
CORE IDENTIFICATION : According to VG 95218 part 63
INDIVIDUAL SCREEN : Copper wire braiding screen with seperating foil under and over braid
COVERING OF CABLING : Wrapped polyester tape with an overlap coverage
SCREEN : Copper wire braiding screen with separating foil over braid
OUTER SHEATH : Halogen free, cross-linked elastomeric compound.
Çalışma Karakteristlikleri
CONSTRUCTION : VG 95218 Part 63
MAX PERMISSIBLE OPERATING VOLTAGE : AC 250V / DC 355V
AC TEST VOLTAGE : 2 kV
WORKING TEMPERATURE : -30°C / + 90°C
MIN BENDING RADIUS (FIXED) : 5xD
GENERAL REQUIREMENTS AND TESTS : VG 95218-2
CURRENT RATINGS : VG 95218-5
FLAME RETARDANT : IEC 60332 /1, IEC 60332 / 3-24 Cat. C
HALOGEN CONTENT : IEC 60754 / 1 – 2
SMOKE DENSITY : IEC 61034 / 1-2 ( DIN EN 50268/1-2)
Teknik Özellikleri
| Designation as per VG95218 Part.63 Dash No |
Cores x size | Number of the single wires (min) |
Wall thickness of insulation nominal | Wall thickness of sheath | Outer Diameter (min- max.) | Cable Weight Approx. | Min. Bending Radius Fixed Installed | Conductor resistance at (20ºC) (max) | Insulation resistance (20ºC) (min) |
|
|---|---|---|---|---|---|---|---|---|---|---|
| No. x mm² | mm | mm | mm | mm | kg/km | mm | (Ω/km) | (MΩ·km) | ||
| A001 | 2x2x0,75 | 7 | 0.4 | 0.8 | 11.1 | 12.5 | 215 | 63 | 53.2 | 800 |
| A002 | 4x2x0,75 | 7 | 0.4 | 1 | 12.9 | 14.5 | 330 | 73 | 53.2 | 800 |
| A003 | 7x2x0,75 | 7 | 0.4 | 1 | 14.9 | 16.4 | 480 | 82 | 53.2 | 800 |
| A004 | 11x2x0,75 | 7 | 0.4 | 1.2 | 19.6 | 21.4 | 700 | 107 | 53.2 | 800 |
| A005 | 14x2x0,75 | 7 | 0.4 | 1.2 | 20.8 | 22.8 | 890 | 114 | 53.2 | 800 |
| A006 | 19x2x0,75 | 7 | 0.4 | 1.4 | 23.4 | 25.4 | 1120 | 127 | 53.2 | 800 |
| A007 | 24x2x0,75 | 7 | 0.4 | 1.4 | 26.4 | 28.4 | 1420 | 142 | 53.2 | 800 |
