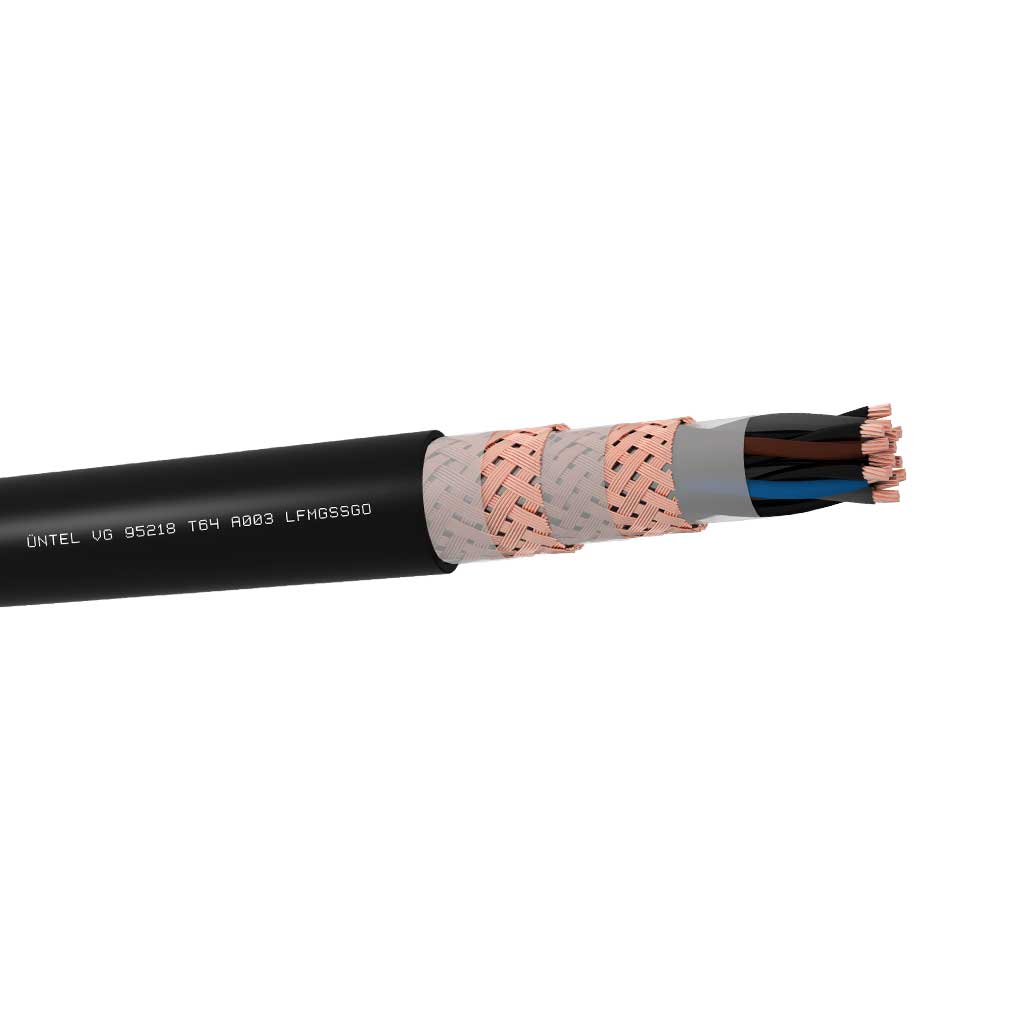

Kablo Yapısı
Conductor: Electrolytic, stranded, copper wire to DIN EN 60228 Class 2
Insulation: Halogen free cross linked polymeric compound
Core Identification: According to VG 95218 part 64
Covering of Cabling: Wrapped polyester tape with an overlap coverage
Screen A: Copper wire braiding screen with separating foil over braid
Screen B: Copper wire brading screen with separating foil over braid. (Only for Type A, LFMGSSGO type)
Outer Sheath: Halogen free, cross-linked elastomeric compound.
Çalışma Karakteristlikleri
Construction: VG 95218 Part 64
Max Permissible Operating Voltage: AC 250V / DC 355V
AC Test Voltage: 2 kV
Working Temperature: -30°C / + 90°C
Min Bending Radius (Fixed): 5xD
General Requirements and Tests: VG 95218-2
Current Ratings: VG 95218-5
Flame Retardant: IEC 60332 /1, IEC 60332 / 3-24 Cat. C
Halogen Content: IEC 60754 / 1 – 2
Smoke Density: IEC 61034 / 1-2 ( DIN EN 50268/1-2)
Teknik Özellikleri
| Designation as per VG95218 Part.64 Dash No | Cores x size | Number of the single wires (min) | Wall thickness of insulation nominal | Wall thickness of sheath | Outer Diameter (min- max.) | Cable Weight Approx. | Min. Bending Radius Fixed Installed | Conductor resistance at (20ºC) (max) | Insulation resistance (20ºC) (min) | |
|---|---|---|---|---|---|---|---|---|---|---|
| No. x mm² | mm | mm | mm | mm | kg/km | mm | (Ω/km) | (MΩ·km) | ||
| A001 | 2x2x0,4 | 7 | 0.2 | 0.8 | 5.8 | 7 | 80 | 35 | 115 | 1500 |
| A002 | 4x2x0,4 | 7 | 0.2 | 0.8 | 7.7 | 9 | 130 | 45 | 115 | 1500 |
| A003 | 7x2x0,4 | 7 | 0.2 | 0.9 | 9.4 | 11 | 210 | 55 | 115 | 1500 |
| A004 | 12x2x0,4 | 7 | 0.2 | 1 | 12.8 | 14.5 | 320 | 73 | 115 | 1500 |
| A005 | 19x2x0,4 | 7 | 0.2 | 1 | 13.8 | 15.7 | 420 | 79 | 115 | 1500 |
| A006 | 27x2x0,4 | 7 | 0.2 | 1.1 | 15.5 | 17.5 | 510 | 88 | 115 | 1500 |
| B001 | 30x2x0,4 | 7 | 0.2 | 1.4 | 17.5 | 18.7 | 480 | 94 | 115 | 1500 |
| B002 | 45x2x0,4 | 7 | 0.2 | 1.6 | 20.6 | 22.7 | 670 | 114 | 115 | 1500 |
