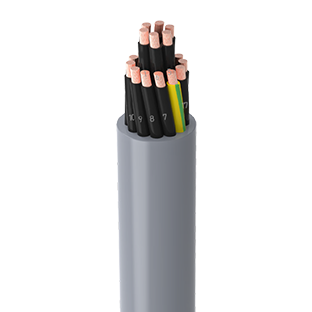

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
INSULATION: PVC compound, TI2 type (EN 50363-3)
CORE IDENTIFICATION: JZ: Black cores with a green yellow core
OZ: Black cores without a green yellow core
SHEATH: PVC compound, TM2 type (EN 50363-4-1)
COLOR: Grey
Çalışma Karakteristlikleri
RATED VOLTAGE: 300/500 V (U0/U)
AC TEST VOLTAGE: 2 kV
WORKING TEMPETATURE
IN FLEXING USE: -5°C to +70°C
IN FIXED USE: -30°C to +70°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 150°C (Max. 5 sec)
MIN. INSTALLATION TEMP.: -5 °C
MIN. BENDING RADIUS: Based on EN 50565-1 Tab. 3
CURRENT CARRYING CAPACITIES: Based on VDE 0298-4 Tab.11
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (free movement) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 2×0,50 | 5,00 | 37 | 25 | 39,00 |
| 2×0,75 | 5,40 | 44 | 27 | 26,00 |
| 2×1 | 5,80 | 52 | 29 | 19,50 |
| 2×1,5 | 6,20 | 63 | 31 | 13,30 |
| 2×2,5 | 6,81 | 85 | 34 | 7,98 |
| 2×4 | 8,39 | 133 | 42 | 4,95 |
| 2×6 | 10,00 | 193 | 50 | 3,30 |
| 2×10 | 13,20 | 330 | 79 | 1,91 |
| 3×0,50 | 5,29 | 45 | 26 | 39,00 |
| 3×0,75 | 5,70 | 52 | 29 | 26,00 |
| 3×1 | 6,15 | 64 | 31 | 19,50 |
| 3×1,5 | 6,55 | 78 | 33 | 13,30 |
| 3×2,5 | 7,39 | 111 | 37 | 7,98 |
| 3×4 | 8,92 | 170 | 45 | 4,95 |
| 3×6 | 10,62 | 246 | 53 | 3,30 |
| 3×10 | 15,25 | 466 | 92 | 1,91 |
| 3×16 | 16,73 | 637 | 100 | 1,21 |
| 3×16+10 | 18,40 | 769 | 110 | 1,21 |
| 3×25+16 | 23,76 | 1213 | 143 | 0,780 |
| 3×35+16 | 26,20 | 1539 | 157 | 0,554 |
| 3×50+25 | 31,90 | 2240 | 191 | 0,386 |
| 3×50+35 | 32,60 | 2354 | 196 | 0,386 |
| 3×70+35 | 35,00 | 2969 | 210 | 0,272 |
| 3×95+50 | 44,80 | 4510 | 269 | 0,206 |
| 4×0,50 | 5,75 | 54 | 29 | 39,00 |
| 4×0,75 | 6,20 | 64 | 31 | 26,00 |
| 4×1 | 6,70 | 79 | 34 | 19,50 |
| 4×1,5 | 7,40 | 101 | 37 | 13,30 |
| 4×2,5 | 8,10 | 140 | 41 | 7,98 |
| 4×4 | 10,01 | 219 | 50 | 4,95 |
| 4×6 | 11,71 | 312 | 59 | 3,30 |
| 4×10 | 17,10 | 599 | 103 | 1,91 |
| 4×16 | 18,82 | 818 | 113 | 1,21 |
| 4×25 | 24,94 | 1312 | 150 | 0,780 |
| 5×0,50 | 6,30 | 63 | 32 | 39,00 |
| 5×0,75 | 6,80 | 77 | 34 | 26,00 |
| 5×1 | 7,51 | 97 | 38 | 19,50 |
| 5×1,5 | 8,10 | 119 | 41 | 13,30 |
| 5×2,5 | 8,90 | 168 | 45 | 7,98 |
| 5×4 | 11,00 | 263 | 55 | 4,95 |
| 5×6 | 13,10 | 383 | 79 | 3,30 |
| 6×0,5 | 6,70 | 73 | 34 | 39,00 |
| 6×0,75 | 7,50 | 93 | 38 | 26,00 |
| 6×1 | 8,10 | 114 | 41 | 19,50 |
| 6×1,5 | 8,80 | 142 | 44 | 13,30 |
| 6×2,5 | 9,80 | 204 | 49 | 7,98 |
| 7×0,5 | 6,70 | 77 | 34 | 39,00 |
| 7×0,75 | 7,50 | 98 | 38 | 26,00 |
| 7×1 | 8,10 | 120 | 41 | 19,50 |
| 7×1,5 | 8,80 | 151 | 44 | 13,30 |
| 7×2,5 | 9,80 | 219 | 49 | 7,98 |
| 8×0,50 | 7,70 | 98 | 39 | 39,00 |
| 8×0,75 | 8,60 | 125 | 43 | 26,00 |
| 8×1 | 9,30 | 153 | 47 | 19,50 |
| 8×1,5 | 10,60 | 205 | 53 | 13,30 |
| 8×2,5 | 11,50 | 280 | 58 | 7,98 |
| 10×0,50 | 8,60 | 112 | 43 | 39,00 |
| 10×0,75 | 9,40 | 138 | 47 | 26,00 |
| 10×1 | 10,40 | 175 | 52 | 19,50 |
| 10×1,5 | 11,30 | 218 | 57 | 13,30 |
| 10×2,5 | 12,60 | 317 | 76 | 7,98 |
| 12×0,50 | 8,90 | 127 | 45 | 39,00 |
| 12×0,75 | 10,00 | 162 | 50 | 26,00 |
| 12×1 | 10,80 | 200 | 54 | 19,50 |
| 12×1,5 | 11,60 | 250 | 58 | 13,30 |
| 12×2,5 | 13,10 | 368 | 79 | 7,98 |
| 14×0,50 | 9,36 | 143 | 47 | 39,00 |
| 14×0,75 | 10,40 | 182 | 52 | 26,00 |
| 14×1 | 11,30 | 226 | 57 | 19,50 |
| 14×1,5 | 12,80 | 302 | 77 | 13,30 |
| 14×2,5 | 13,70 | 419 | 82 | 7,98 |
| 16×0,50 | 10,00 | 166 | 50 | 39,00 |
| 16×0,75 | 11,00 | 207 | 55 | 26,00 |
| 16×1 | 11,90 | 256 | 60 | 19,50 |
| 16×1,5 | 13,50 | 342 | 81 | 13,30 |
| 16×2,5 | 14,70 | 483 | 88 | 7,98 |
| 18×0,50 | 10,50 | 184 | 53 | 39,00 |
| 18×0,75 | 11,50 | 230 | 58 | 26,00 |
| 18×1 | 12,70 | 291 | 76 | 19,50 |
| 18×1,5 | 14,20 | 381 | 85 | 13,30 |
| 18×2,5 | 15,40 | 538 | 92 | 7,98 |
| 19×0,50 | 10,50 | 187 | 53 | 39,00 |
| 19×0,75 | 11,50 | 234 | 58 | 26,00 |
| 19×1 | 12,70 | 298 | 76 | 19,50 |
| 19×1,5 | 14,20 | 391 | 85 | 13,30 |
| 19×2,5 | 15,40 | 554 | 92 | 7,98 |
| 24×0,50 | 12,40 | 240 | 74 | 39,00 |
| 24×0,75 | 13,60 | 299 | 82 | 26,00 |
| 24×1 | 15,00 | 379 | 90 | 19,50 |
| 24×1,5 | 16,80 | 499 | 101 | 13,30 |
| 24×2,5 | 18,20 | 706 | 109 | 7,98 |
| 25×0,50 | 12,70 | 256 | 76 | 39,00 |
| 25×0,75 | 14,00 | 320 | 84 | 26,00 |
| 25×1 | 15,40 | 404 | 92 | 19,50 |
| 25×1,5 | 17,40 | 540 | 104 | 13,30 |
| 25×2,5 | 18,70 | 751 | 112 | 7,98 |
| 30×0,50 | 13,10 | 286 | 79 | 39,00 |
| 30×0,75 | 14,40 | 358 | 86 | 26,00 |
| 30×1 | 15,90 | 455 | 95 | 19,50 |
| 30×1,5 | 18,00 | 609 | 108 | 13,30 |
| 30×2,5 | 19,50 | 865 | 117 | 7,98 |
| 32×0,50 | 13,60 | 307 | 82 | 39,00 |
| 32×0,75 | 15,20 | 393 | 91 | 26,00 |
| 32×1 | 16,50 | 490 | 99 | 19,50 |
| 32×1,5 | 18,70 | 655 | 112 | 13,30 |
| 32×2,5 | 20,20 | 929 | 121 | 7,98 |
| 36×0,50 | 14,10 | 338 | 85 | 39,00 |
| 36×0,75 | 15,70 | 431 | 94 | 26,00 |
| 36×1 | 17,30 | 547 | 104 | 19,50 |
| 36×1,5 | 19,60 | 731 | 118 | 13,30 |
| 36×2,5 | 21,00 | 1028 | 126 | 7,98 |
| 40×0,50 | 14,90 | 391 | 89 | 39,00 |
| 40×0,75 | 16,40 | 490 | 98 | 26,00 |
| 40×1 | 18,00 | 621 | 108 | 19,50 |
| 40×1,5 | 20,40 | 830 | 122 | 13,30 |
| 40×2,5 | 22,10 | 1176 | 133 | 7,98 |
