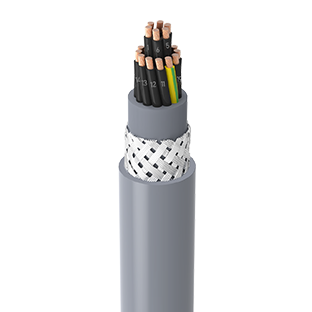

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
INSULATION: PVC compound, TI2 type (EN 50363-3)
CORE IDENTIFICATION: JZ: Black cores with a green yellow core
OZ: Black cores without a green yellow core
INNER SHEATH: Extruded Special PVC compound
SCREEN: Tinned copper wire braiding
SHEATH: PVC compound, TM2 type (EN 50363-4-1)
COLOR: Grey or Transparent
Çalışma Karakteristlikleri
RATED VOLTAGE: 300/500 V (U0/U)
AC TEST VOLTAGE: 2 kV
WORKING TEMPETATURE
IN FLEXING USE: -5°C to +70°C
IN FIXED USE: -30°C to +70°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 150°C (Max. 5 sec)
MIN. INSTALLATION TEMP.: -5 °C
MIN. BENDING RADIUS: Based on EN 50565-1 Tab. 3
CURRENT CARRYING CAPACITIES: Based on VDE 0298-4 Tab.11
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (free movement) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 2×0,50 | 7,00 | 68 | 35 | 39,00 |
| 2×0,75 | 7,40 | 80 | 37 | 26,00 |
| 2×1 | 8,00 | 90 | 40 | 19,50 |
| 2×1,5 | 8,50 | 115 | 43 | 13,30 |
| 2×2,5 | 9,90 | 130 | 50 | 7,98 |
| 2×4 | 11,10 | 110 | 56 | 4,95 |
| 3×0,50 | 7,20 | 70 | 36 | 39,00 |
| 3×0,75 | 8,00 | 95 | 40 | 26,00 |
| 3×1 | 8,20 | 105 | 41 | 19,50 |
| 3×1,5 | 8,90 | 130 | 45 | 13,30 |
| 3×2,5 | 10,50 | 180 | 53 | 7,98 |
| 3×4 | 12,20 | 250 | 73 | 4,95 |
| 3×6 | 14,10 | 340 | 85 | 3,30 |
| 3×10 | 17,50 | 605 | 105 | 1,91 |
| 4×0,50 | 8,00 | 90 | 40 | 39,00 |
| 4×0,75 | 8,40 | 110 | 42 | 26,00 |
| 4×1 | 8,70 | 125 | 44 | 19,50 |
| 4×1,5 | 9,70 | 155 | 49 | 13,30 |
| 4×2,5 | 10,40 | 220 | 52 | 7,98 |
| 4×4 | 13,20 | 315 | 79 | 4,95 |
| 4×6 | 15,80 | 455 | 95 | 3,30 |
| 4×10 | 18,70 | 705 | 112 | 1,91 |
| 4×16 | 21,80 | 1000 | 131 | 1,21 |
| 4×25 | 26,00 | 1480 | 156 | 0,780 |
| 4×35 | 26,00 | 1480 | 156 | 0,554 |
| 4×50 | 34,50 | 2700 | 207 | 0,386 |
| 4×70 | 40,50 | 3880 | 243 | 0,272 |
| 4×95 | 46,30 | 5070 | 278 | 0,206 |
| 4×120 | 51,60 | 6280 | 310 | 0,161 |
| 5×0,50 | 8,30 | 100 | 42 | 39,00 |
| 5×0,75 | 9,00 | 125 | 45 | 26,00 |
| 5×1 | 9,50 | 145 | 48 | 19,50 |
| 5×1,5 | 10,50 | 185 | 53 | 13,30 |
| 5×2,5 | 12,80 | 280 | 77 | 7,98 |
| 5×4 | 14,50 | 385 | 87 | 4,95 |
| 5×6 | 17,10 | 555 | 103 | 3,30 |
| 5×10 | 20,70 | 875 | 124 | 1,91 |
| 5×16 | 23,80 | 1230 | 143 | 1,21 |
| 5×25 | 29,00 | 1930 | 174 | 0,780 |
| 5×35 | 33,00 | 2400 | 198 | 0,554 |
| 7×0,50 | 8,80 | 125 | 44 | 39,00 |
| 7×0,75 | 9,70 | 145 | 49 | 26,00 |
| 7×1 | 10,30 | 175 | 52 | 19,50 |
| 7×1,5 | 11,40 | 225 | 57 | 13,30 |
| 7×2,5 | 13,70 | 345 | 82 | 7,98 |
| 10×0,50 | 11,00 | 160 | 55 | 39,00 |
| 10×0,75 | 11,70 | 210 | 59 | 26,00 |
| 10×1 | 12,80 | 250 | 77 | 19,50 |
| 10×1,5 | 14,20 | 330 | 85 | 13,30 |
| 10×2,5 | 16,60 | 520 | 100 | 7,98 |
| 12×0,50 | 11,20 | 180 | 56 | 39,00 |
| 12×0,75 | 12,00 | 225 | 72 | 26,00 |
| 12×1 | 13,00 | 285 | 78 | 19,50 |
| 12×1,5 | 14,30 | 365 | 86 | 13,30 |
| 12×2,5 | 18,00 | 570 | 108 | 7,98 |
| 18×0,50 | 13,20 | 275 | 79 | 39,00 |
| 18×0,75 | 14,50 | 340 | 87 | 26,00 |
| 18×1 | 15,60 | 415 | 94 | 19,50 |
| 18×1,5 | 17,30 | 535 | 104 | 13,30 |
| 18×2,5 | 20,80 | 830 | 125 | 7,98 |
| 25×0,50 | 15,50 | 355 | 93 | 39,00 |
| 25×0,75 | 16,60 | 475 | 100 | 26,00 |
| 25×1 | 17,40 | 535 | 104 | 19,50 |
| 25×1,5 | 19,40 | 730 | 116 | 13,30 |
| 25×2,5 | 24,60 | 1150 | 148 | 7,98 |
