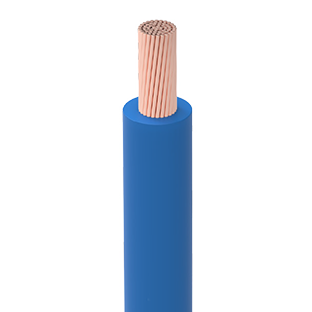

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
INSULATION: PVC compound, Type TI1 (EN 50363-3)
COLOR: All colors available
Çalışma Karakteristlikleri
RATED VOLTAGE: H05V-K 300/500V I H07V-K 450/750 V (U0/U)
AC TEST VOLTAGE: 2 kV
WORKING TEMPETATURE (Without mechanIcal shocks): -30°C to +70°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 160°C (Maximum allowable time 5 sec)
MIN. INSTALLATION TEMP.: 5°C
MIN. BENDING RADIUS: EN 50565-1 Tab. 3
CURRENT CARRYING CAPACITIES: VDE 0298-4 Tab. 3 & Tab. 11 IEC 60364-5-52 Tab. B52.2 & B52.4 & B52.10
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) | Min.Bending Radius (fixed installation) (mm) | Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| H05V-K | ||||
| 1×0,50 | 2,10 | 9 | 8 | 39,00 |
| 1×0,75 | 2,30 | 12 | 9 | 26,00 |
| 1×1 | 2,50 | 14 | 10 | 19,50 |
| H07V-K | ||||
| 1×1,5 | 2,90 | 19 | 12 | 13,30 |
| 1×2,5 | 3,55 | 30 | 14 | 7,98 |
| 1×4 | 4,05 | 46 | 16 | 4,95 |
| 1×6 | 4,60 | 63 | 18 | 3,30 |
| 1×10 | 6,10 | 108 | 24 | 1,91 |
| 1×16 | 7,10 | 161 | 28 | 1,21 |
| 1×25 | 9,20 | 250 | 46 | 0,780 |
| 1×35 | 10,10 | 339 | 51 | 0,554 |
| 1×50 | 12,00 | 475 | 60 | 0,386 |
| 1×70 | 13,90 | 678 | 83 | 0,272 |
| 1×95 | 15,90 | 885 | 95 | 0,206 |
| 1×120 | 17,60 | 1118 | 106 | 0,161 |
| 1×150 | 19,40 | 1390 | 116 | 0,129 |
| 1×185 | 21,70 | 1692 | 130 | 0,106 |
| 1×240 | 25,00 | 2280 | 150 | 0,0801 |
| 1×300 | 27,80 | 2819 | 167 | 0,0641 |
