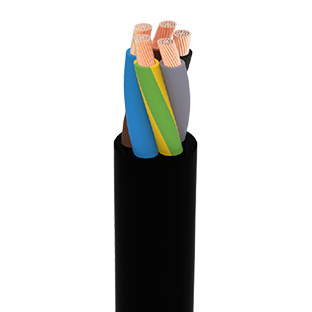

Kablo Yapısı
CONDUCTOR: Electrolytic annealed, class 5 stranded plain copper wires (tinned conductor on request)
SEPERATOR: A suitable tape may be applied over the conductor
INSULATION: EI8 type cross-linked elastomeric compound (EN 50363-5)
INNER SHEATH: EM8 or EM10 type elastomer compound. If outer sheath thickness is greater than 2,4 mm
OUTER SHEATH: EM8 type cross-linked elastomeric compound (EN 50363-6)
COLOR: Black (other colors available on request)
Çalışma Karakteristlikleri
RATED VOLTAGE: 450/750 V (U0/U)
AC TEST VOLTAGE: 2,5 kV
OPERATING TEMPETATURE
(WIthout mechanIcal shocks)
IN FLEXING USE: -5°C to +70°C
IN FIXED USE: -20°C to +90°C
CONDUCTOR SHORT-CIRCUIT TEMP.: 250°C (Max. 5 sec)
MIN. INSTALLATION TEMP.: -5°C
MIN. BENDING RADIUS: EN 50565-1 Tab. 3
CURRENT CARRYING CAPACITIES: VDE 0298-4 Tab.13,
IEC 60364-5-52 Tab. B.52.12 & Tab. C.52.1
Teknik Özellikleri
| Cross Section (mm²) | Nominal Overall Diameter (mm) | Approximate Weight (kg / km) |
Min.Bending Radius (free movement) (mm) |
Max. Resistance of Conductors at 20°C (ohm / km) |
|---|---|---|---|---|
| 1×1,5 | 6,20 | 56 | 25 | 13,30 |
| 1×2,5 | 6,80 | 71 | 27 | 7,98 |
| 1×4 | 7,70 | 97 | 31 | 4,95 |
| 1×6 | 8,40 | 123 | 34 | 3,30 |
| 1×10 | 10,30 | 191 | 41 | 1,91 |
| 1×16 | 11,50 | 260 | 46 | 1,21 |
| 1×25 | 14,20 | 388 | 71 | 0,78 |
| 1×35 | 15,50 | 502 | 78 | 0,554 |
| 1×50 | 17,80 | 680 | 89 | 0,386 |
| 1×70 | 20,10 | 927 | 121 | 0,272 |
| 1×95 | 22,50 | 1.185 | 135 | 0,206 |
| 1×120 | 24,60 | 1.470 | 148 | 0,161 |
| 1×150 | 26,80 | 1.797 | 161 | 0,129 |
| 1×185 | 29,50 | 2.167 | 177 | 0,106 |
| 1×240 | 33,00 | 2833 | 198 | 0,0801 |
| 1×300 | 36,00 | 3442 | 216 | 0,0641 |
| 1×400 | 41,30 | 4459 | 248 | 0,0486 |
| 1×500 | 44,60 | 5748 | 268 | 0,0384 |
| 1×630 | 47,80 | 7178 | 287 | 0,0287 |
| 2×1 | 8,40 | 100 | 34 | 19,50 |
| 2×1,5 | 9,40 | 128 | 38 | 13,30 |
| 2×2,5 | 11,00 | 181 | 44 | 7,98 |
| 2×4 | 12,60 | 248 | 63 | 4,95 |
| 2×6 | 14,00 | 318 | 70 | 3,30 |
| 2×10 | 19,60 | 601 | 98 | 1,91 |
| 2×16 | 22,00 | 799 | 132 | 1,21 |
| 2×25 | 26,80 | 1.184 | 161 | 0,78 |
| 3×1 | 9,10 | 121 | 36 | 19,50 |
| 3×1,5 | 10,10 | 153 | 40 | 13,30 |
| 3×2,5 | 11,80 | 217 | 47 | 7,98 |
| 3×4 | 13,50 | 300 | 68 | 4,95 |
| 3×6 | 15,00 | 390 | 75 | 3,30 |
| 3×10 | 21,10 | 731 | 127 | 1,91 |
| 3×16 | 23,60 | 980 | 142 | 1,21 |
| 3×25 | 29,20 | 1.483 | 175 | 0,78 |
| 3×35 | 31,70 | 1.873 | 190 | 0,554 |
| 3×50 | 36,60 | 2.546 | 220 | 0,386 |
| 3×70 | 41,30 | 3.429 | 248 | 0,272 |
| 3×95 | 46,60 | 4.413 | 280 | 0,206 |
| 3×120 | 50,90 | 5.430 | 305 | 0,161 |
| 3×150 | 55,50 | 6.614 | 333 | 0,129 |
| 3×185 | 61,30 | 8.021 | 368 | 0,106 |
| 3×240 | 69,80 | 10627 | 419 | 0,0801 |
| 3×300 | 77,10 | 13055 | 463 | 0,0641 |
| 4×1 | 10,10 | 150 | 40 | 19,50 |
| 4×1,5 | 11,20 | 191 | 45 | 13,30 |
| 4×2,5 | 13,00 | 269 | 65 | 7,98 |
| 4×4 | 14,90 | 374 | 75 | 4,95 |
| 4×6 | 16,70 | 493 | 84 | 3,30 |
| 4×10 | 23,00 | 894 | 138 | 1,91 |
| 4×16 | 25,80 | 1.211 | 155 | 1,21 |
| 4×25 | 32,40 | 1.867 | 194 | 0,78 |
| 4×35 | 35,10 | 2.361 | 211 | 0,554 |
| 4×50 | 40,50 | 3.206 | 243 | 0,386 |
| 4×70 | 45,90 | 4.352 | 275 | 0,272 |
| 4×95 | 51,80 | 5.646 | 311 | 0,206 |
| 4×120 | 56,50 | 6.888 | 339 | 0,161 |
| 4×150 | 61,80 | 8.424 | 371 | 0,129 |
| 4×185 | 68,40 | 10.231 | 410 | 0,106 |
| 4×240 | 77,80 | 13535 | 467 | 0,0801 |
| 4×300 | 86,00 | 16633 | 516 | 0,0641 |
| 5×1 | 11,10 | 182 | 44 | 19,50 |
| 5×1,5 | 12,40 | 235 | 62 | 13,30 |
| 5×2,5 | 14,40 | 331 | 72 | 7,98 |
| 5×4 | 16,70 | 469 | 84 | 4,95 |
| 5×6 | 19,00 | 622 | 95 | 3,30 |
| 5×10 | 25,30 | 1.091 | 152 | 1,91 |
| 5×16 | 28,60 | 1496 | 172 | 1,21 |
| 5×25 | 25,90 | 2302 | 155 | 0,78 |
| 6×1,5 | 14,60 | 317 | 73 | 13,30 |
| 6×2,5 | 16,80 | 438 | 84 | 7,98 |
| 6×4 | 19,30 | 609 | 97 | 4,95 |
| 7×1,5 | 14,60 | 327 | 73 | 13,30 |
| 7×2,5 | 16,80 | 454 | 84 | 7,98 |
| 7×4 | 19,30 | 635 | 97 | 4,95 |
| 12×1,5 | 19,20 | 531 | 96 | 13,30 |
| 12×2,5 | 22,10 | 739 | 133 | 7,98 |
| 12×4 | 25,80 | 1.061 | 155 | 4,95 |
| 18×1,5 | 22,40 | 742 | 134 | 13,30 |
| 18×2,5 | 26,00 | 1.050 | 156 | 7,98 |
| 18×4 | 30,30 | 1507 | 182 | 4,95 |
| 24×1,5 | 26,20 | 967 | 157 | 13,30 |
| 24×2,5 | 30,60 | 1.382 | 184 | 7,98 |
| 36×1,5 | 30,00 | 1.344 | 180 | 13,30 |
| 36×2,5 | 35,20 | 1.944 | 211 | 7,98 |
