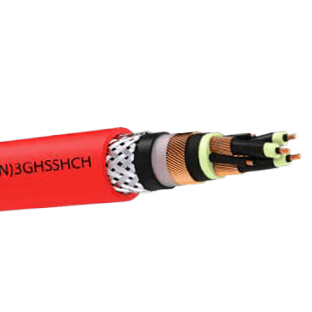

Kablo Yapısı

Conductors : Flexible electrolytic copper wire acc. to DIN VDE 0295 – Class 5
Insulation Main Cores : 3GI3 type EPR compound
Pilot Control Cores : 3GI3 type EPR compound
Protective Conductor : Made of plain copper wires or copper wire braiding laid-up concentrically around each main core
Electrical Field : Extruded inner and outer rubber semiconductive layer For
Control : 3,6/6 kV cables outer semiconductive layer only
Core Identification Main Cores : Natural coloring, design acc. to DIN VDE 0250 Part.1
Pilot Cores : Black colored and number coded
Lay Up : Three main conductors laid-up with three pilot control cores in the outer interstice Protective cores are concentrically wrapped over insulation of power cores
Inner Sheath : Special Halogen free and flame retardant HFFR compound
Monitoring : Semiconductive tape + overall concentric lay of copper wires and
Conductor : syntetic tape over wires
Inner Sheath : Special Halogen free and flame retardant HFFR compound
Armour : Galvanized steel wire braiding, coverage minimum 75 %
Outer Sheath : Special Halogen free and flame retardant HFFR compound
Colour : Red or Black
